Models

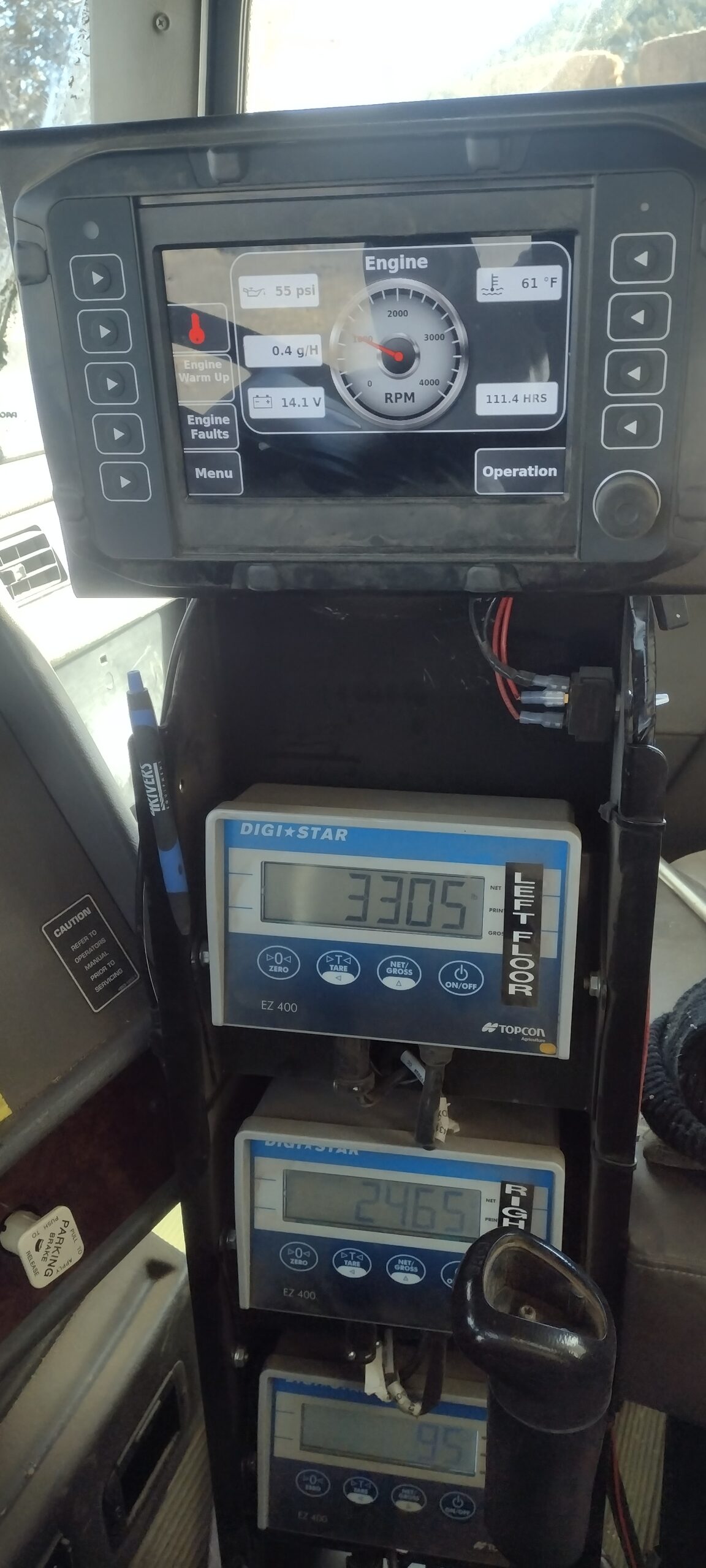

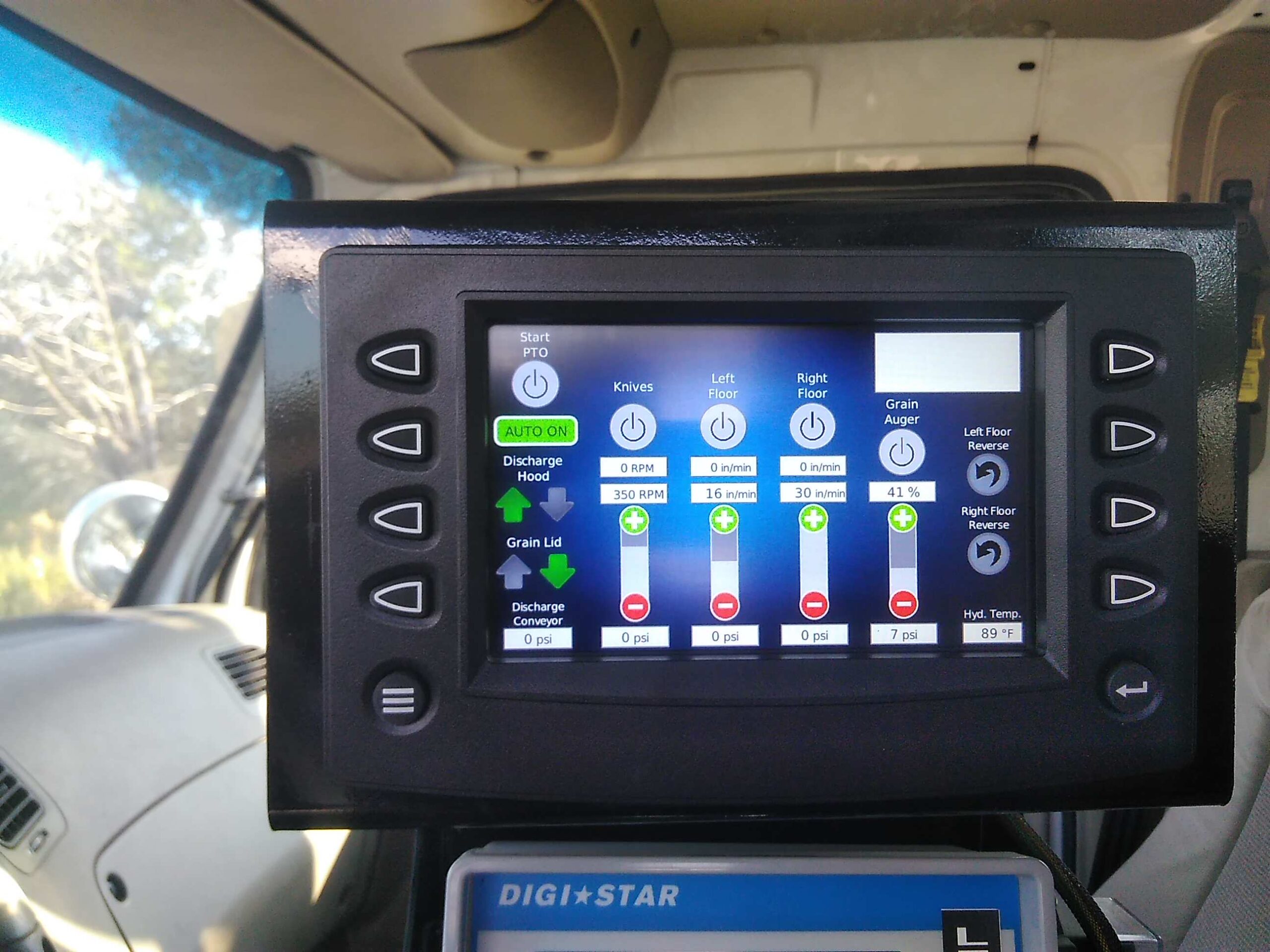

Touch Screen Controlled Hydraulic Drive 4Bale Truck Mounted EZ Ration Processor
Here is an example of our new Computer Controlled Hydraulic drive four bale EZ Ration Processor with nearly all the bells and whistles — Grain attachment with an air activated lid — air activated Discharge hood — complete Scale system –nearly everything you can get to increase the efficiency in your feeding operation is on this unit
Load up some good hay and some cheap filler feed – with the patented ability to run the floor chains independently allows you to blend the roughage any way you want–add some grain or cake for your replacement heifers, and you are set–change and adjust the blend for different classes of livestock and maximum feeding efficiency —
THERE IS NO BETTER – CHEAPER – QUICKER WAY TO FEED COWS

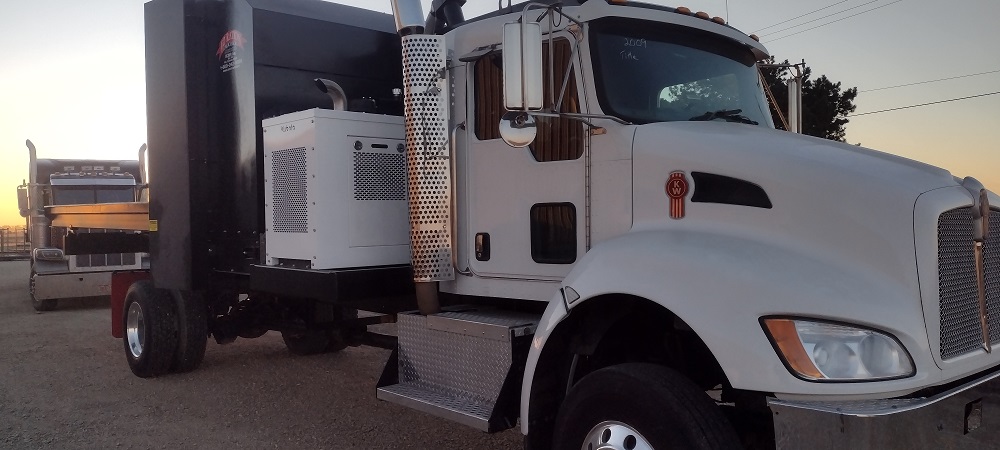

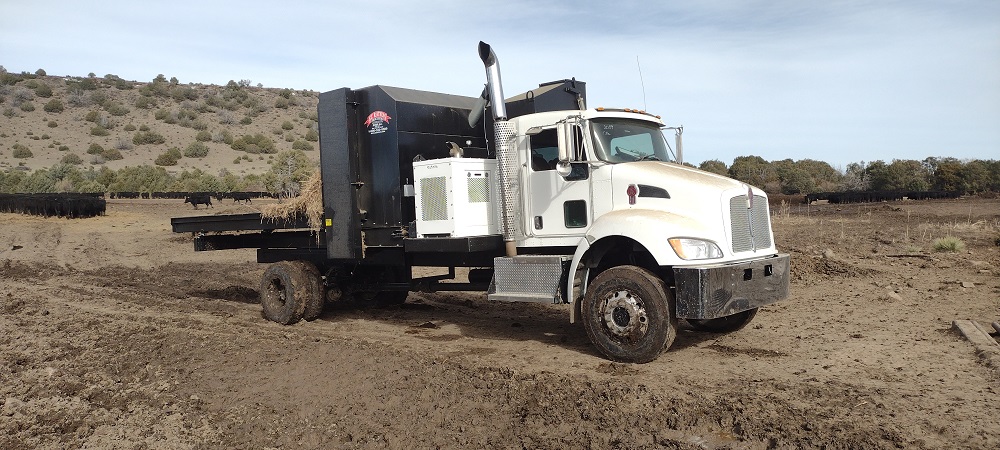

New Kubota Powered Touch Screen Controlled Hydraulic Drive 4 & 6 Bale Truck Mounted EZ Ration Processor
Our new Hydraulic, all Self-contained, Kubota Powered, touch screen controlled, 4 or 6 bale, Truck mounted, EZ Ration Processor. It is compatible with virtually any truck. No more having to keep the truck wrapped to 1000 RPMs to power the EZ Ration Processor. No more having to deal with radiator issues to keep the truck from getting hot. The truck can literally just idle around. It can go on a truck with either a standard or automatic transmission. No PTO is required. It has the same touch screen controls used on the hydraulic model and the touch screen also controls all the functions and the read outs for the Kubota motor. A grain attachment is an option and so are scales as well as virtually every other option that is available on our hydraulic drive model. It is pretty awesome. If you want to Level Up with the Latest and the Greatest – here you go.

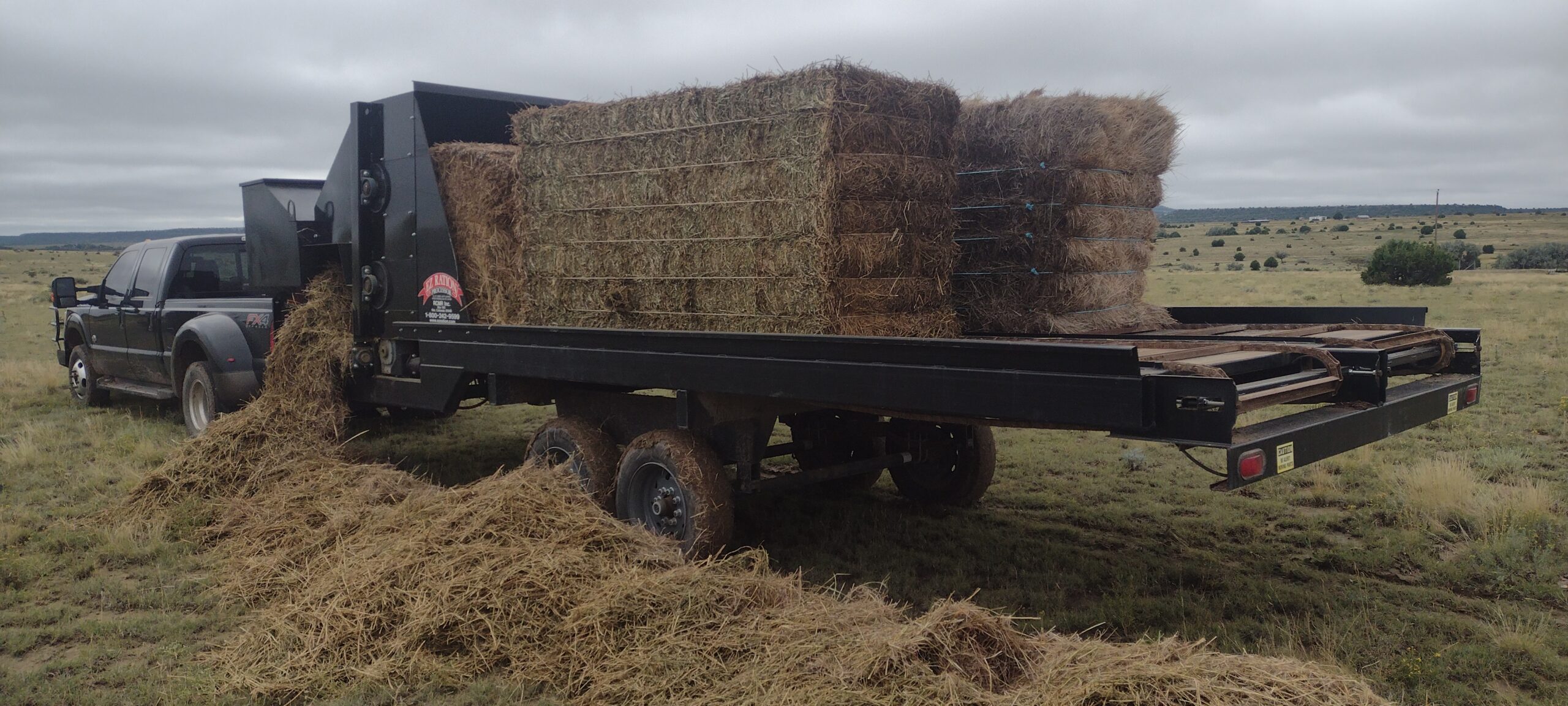

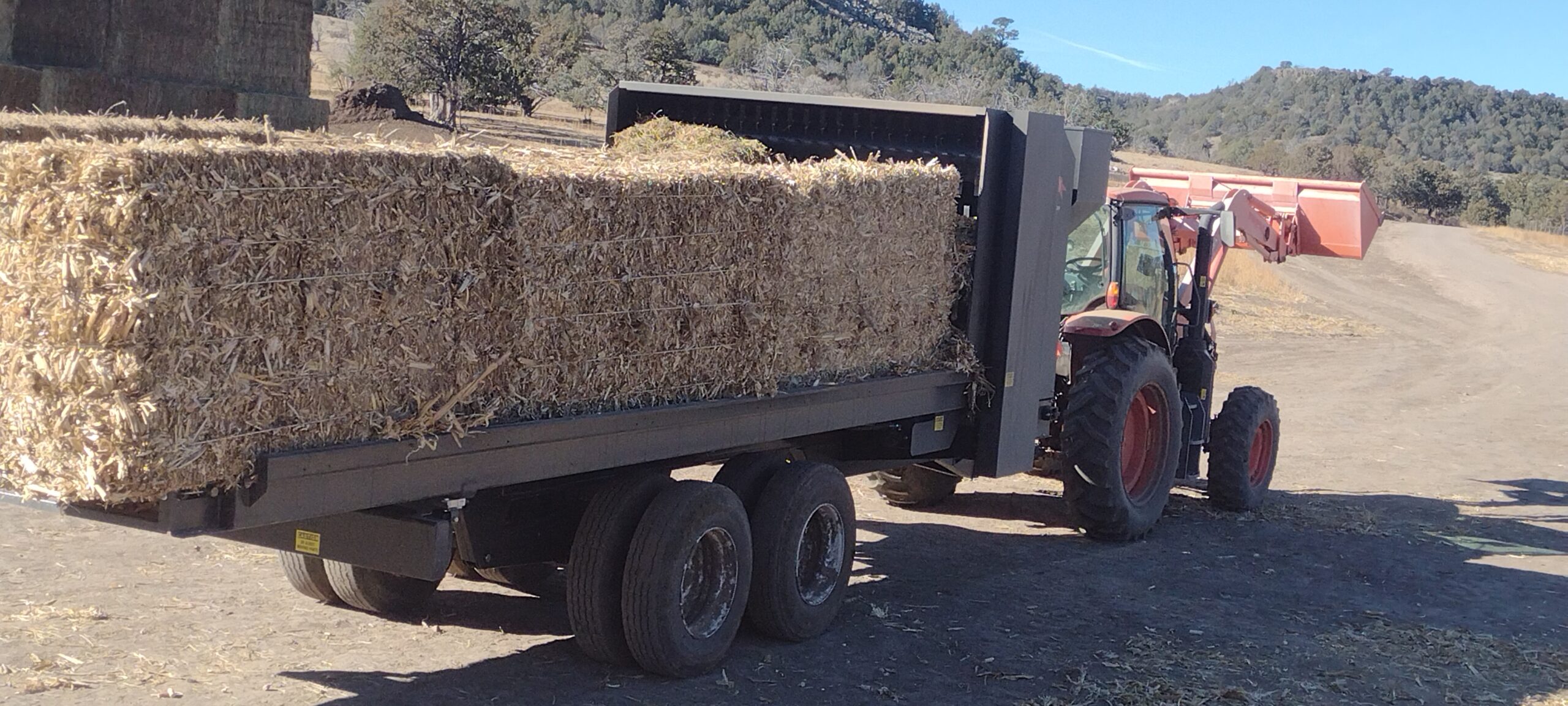

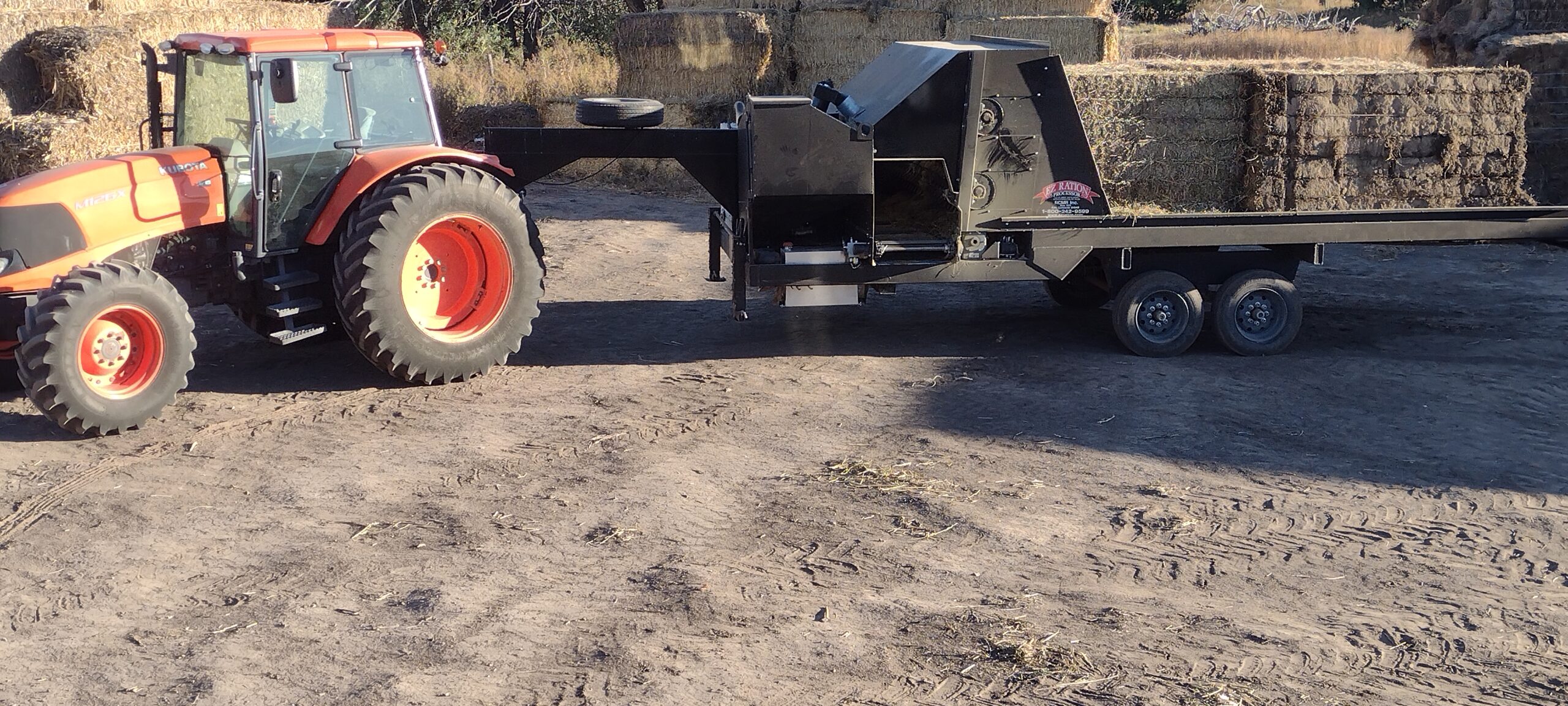

4Bale Pickup Pulled, Kubota Powered, all Self-contained, EZ Ration Processor with a Grain or Cube Bin

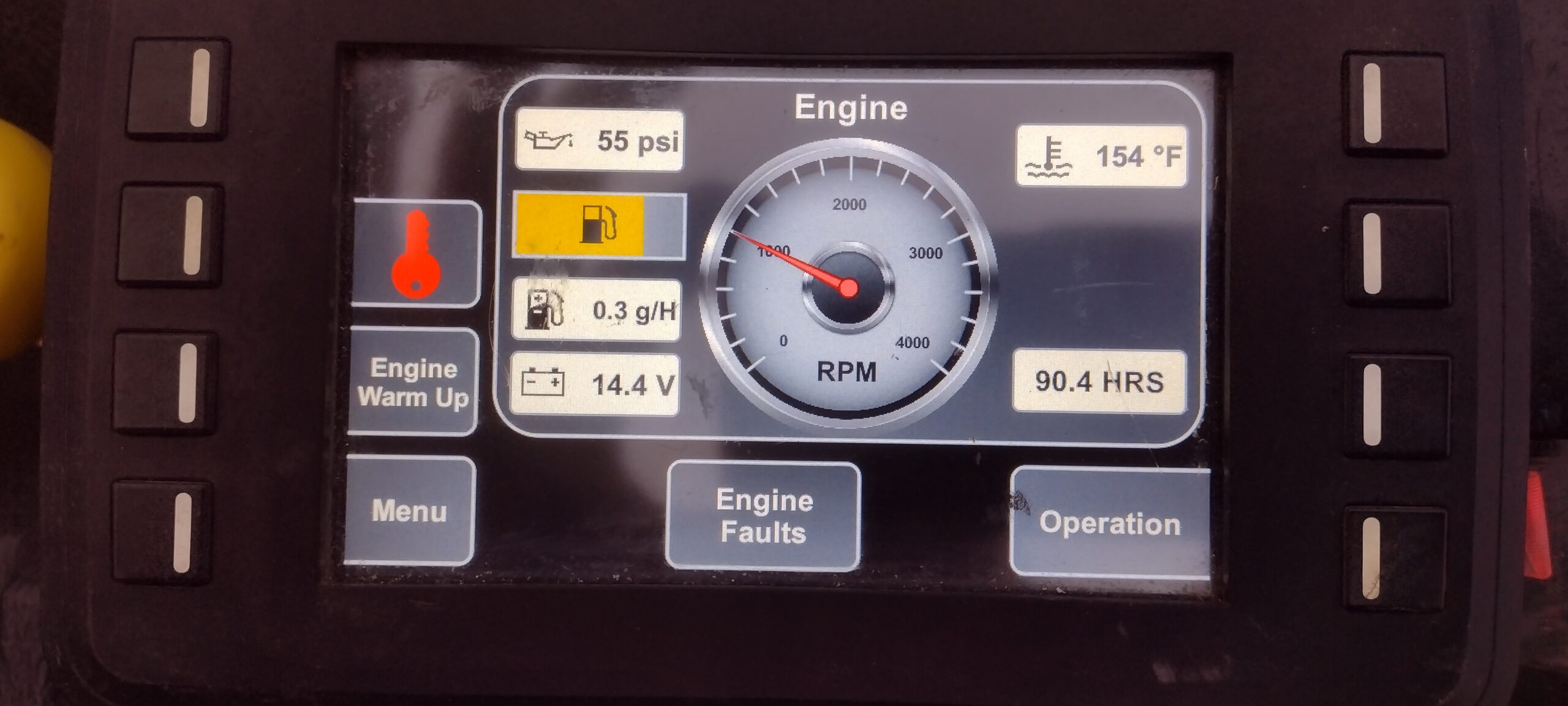

This is our new 4-Bale Pickup or Tractor Pulled EZ Ration Processor. It has touch screen controls for both the Kubota motor and the EZ Ration Processor. It combines versatility with mobility. It pulls like a gooseneck horse trailer with same trailer plug-in for tail lights, brake, and turn signals. It can also be pull by virtually any tractor with a gooseneck ball attachment on the three point.
They come standard with a grain (or cube) bin allowing for the blending of two different roughages and a grain or cubes. If you are spread out and need to feed everything better, cheaper, and quicker, here you go. With the grain bin you can create cost efficient growing rations for weaned calves and replacement heifers and still feed a roughage ration of a whole different blend to your running aged cows. Like all EZ Ration Processors, it can blend two different types of hay/feed in any desired ratio.
We are using this same Kubota Motor on our Truck mount self-contained models and they appear to have more power than the hydraulic units that we are running off the truck’s PTO.
Scales are not an option, but it has a program in it that if you know and put in the average weight of your bales it will calculate how much is being fed. It is a pretty cool set up. If you are looking to Level Up and maintain a lot of versatility this is the model for you.

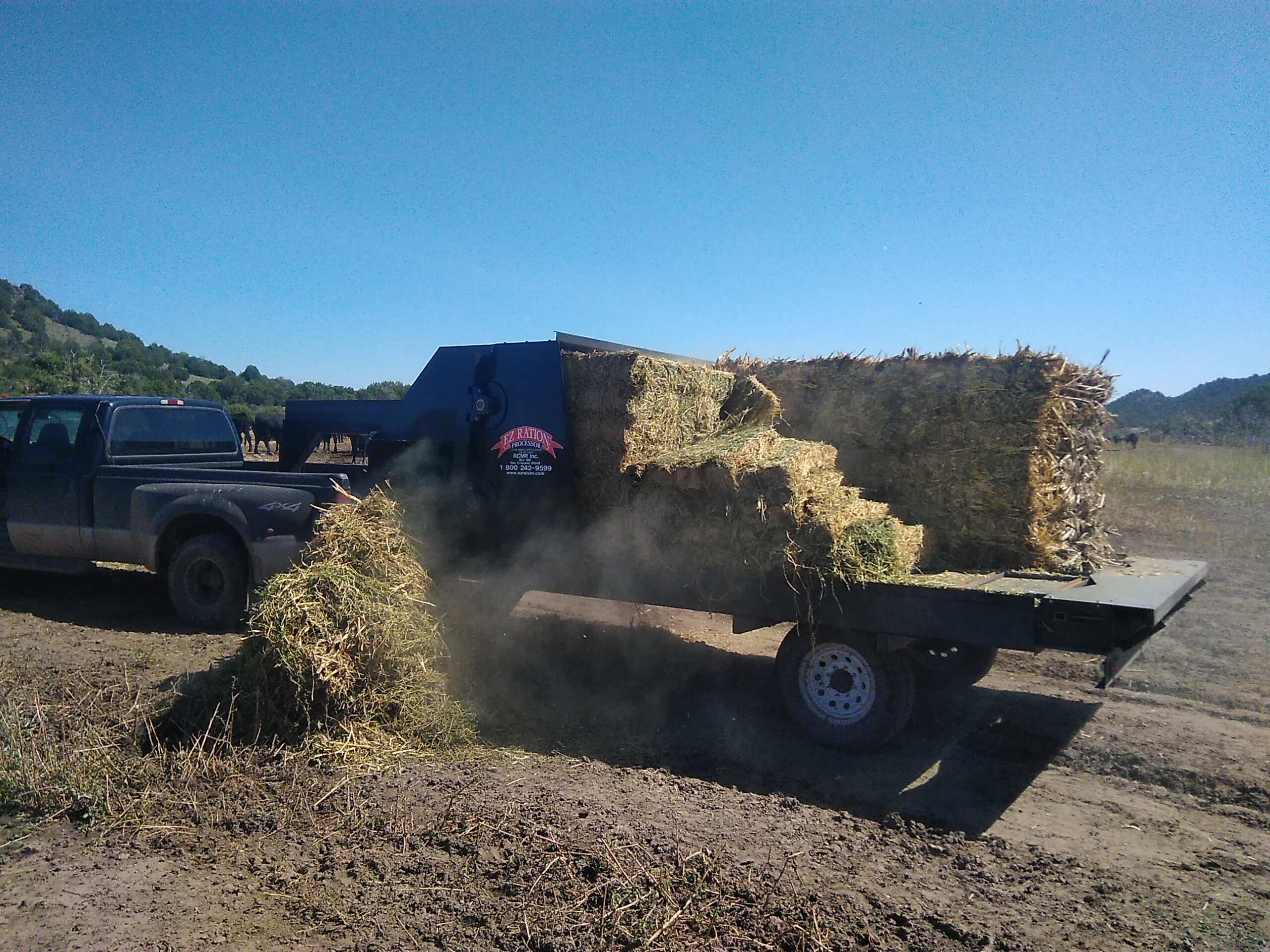

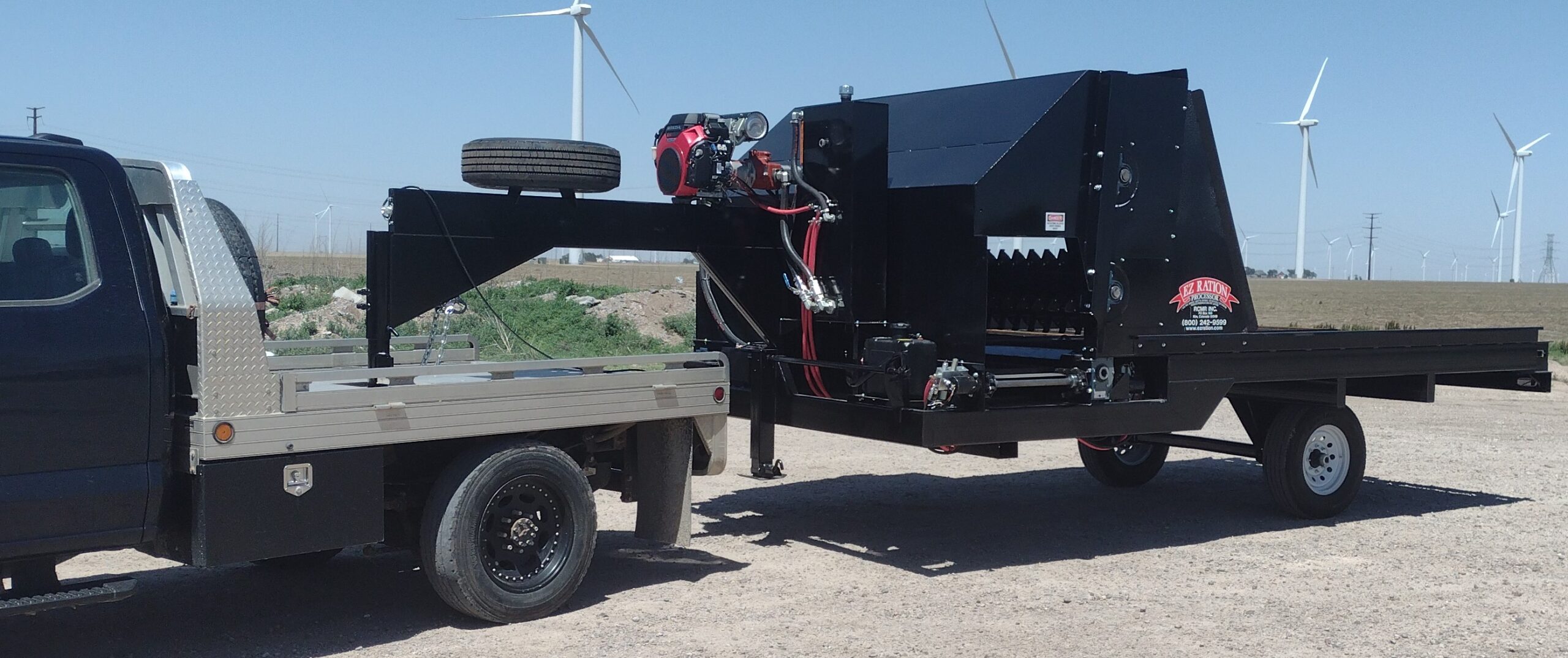

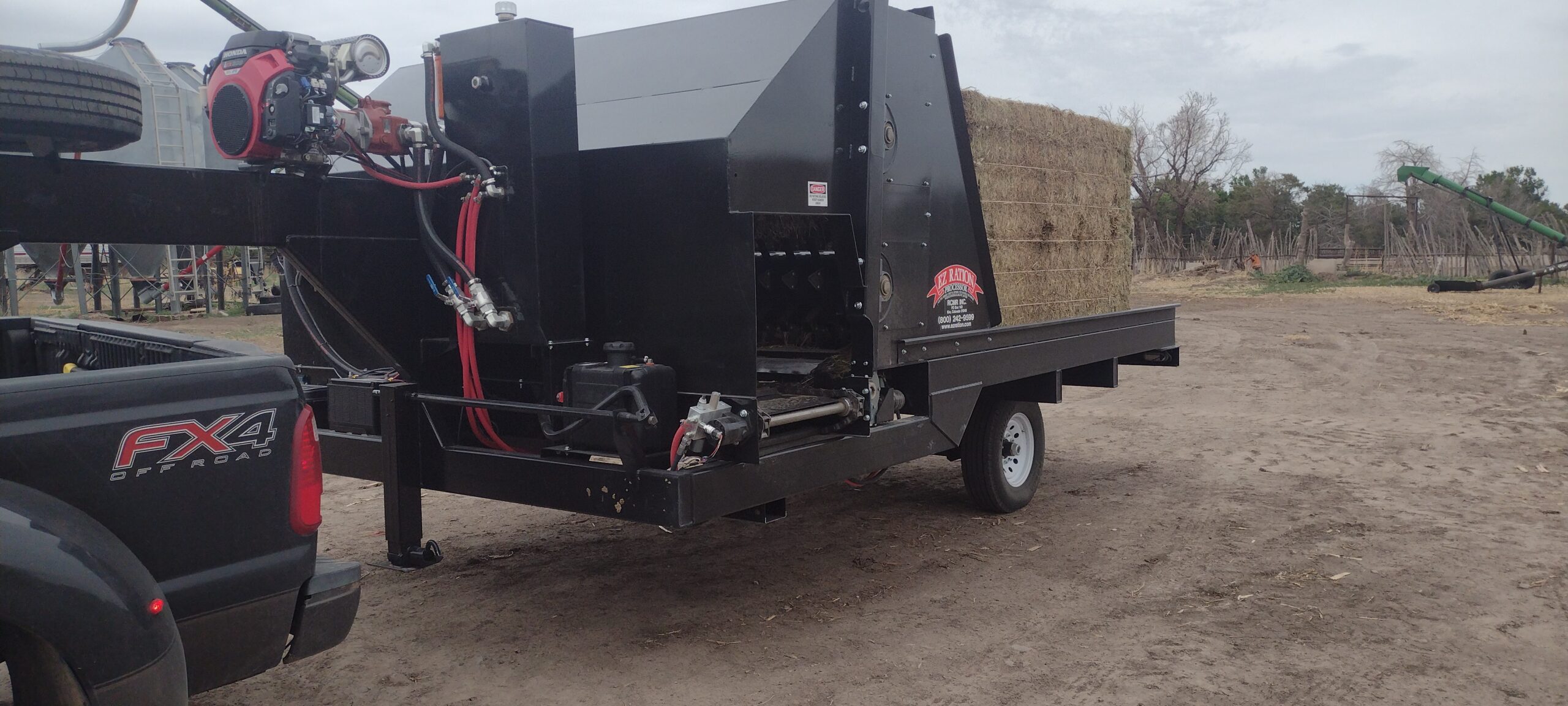

2Bale Pickup Pulled, Honda Powered, all Self-contained, EZ Ration Processor
This is our 2-Bale Pickup or Tractor Pulled EZ Ration Processor. It has touch screen controls for both the Honda motor and the EZ Ration Processor. It combines versatility with mobility. It pulls like a gooseneck horse trailer with same trailer plug-in for tail lights, brake, and turn signals. It can also be pull by virtually any tractor with a gooseneck ball attachment on the three-point. Like all EZ Ration Processors, it can blend two different types of hay/feed in any desired ratio.
Scales are not an option, but it has a program in it that if you know and put in the average weight of your bales it will calculate how much is being fed. It is a pretty cool set up. If you are looking for a smaller economical version of an EZ Ration Processor to Level Up with this is the model for you.

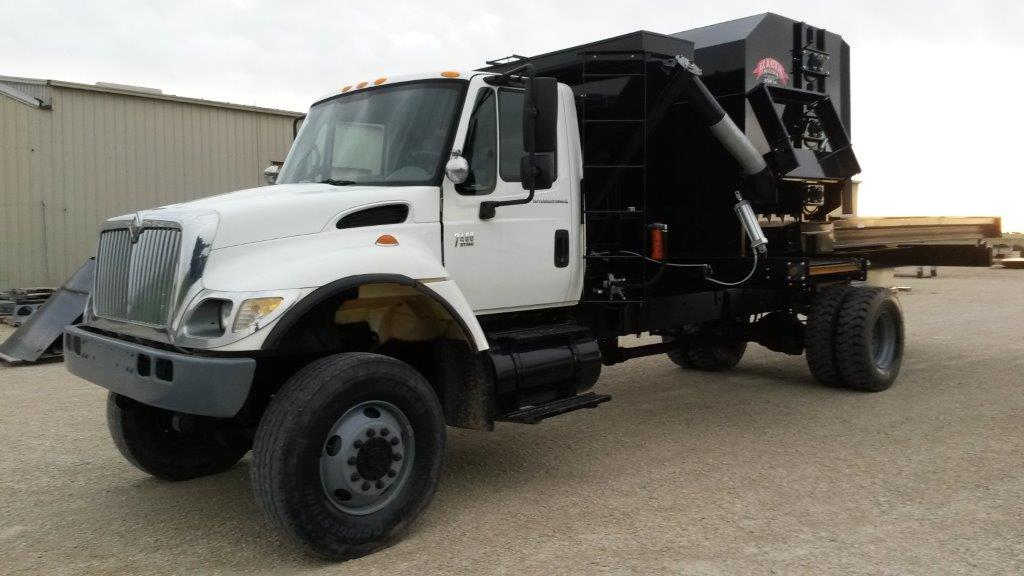

Conventional Drive 4Bale Truck mounted EZ Ration Processor with Grain
Here is an example of a conventional drive Four Bale EZ Ration Processor with the Grain attachment with an air activated lid — air activated Discharge hood — complete Scale system–On a 4×4 Truck – for Trucks with the MT653 Allison Transmission we recommend our conventional drive unit we have been building for years -we have been continuing to work on improving and perfecting this model for nearly 2 decades – this is a great unit for a 4×4 or 6×6 truck that has the MT653 Allison Transmission.

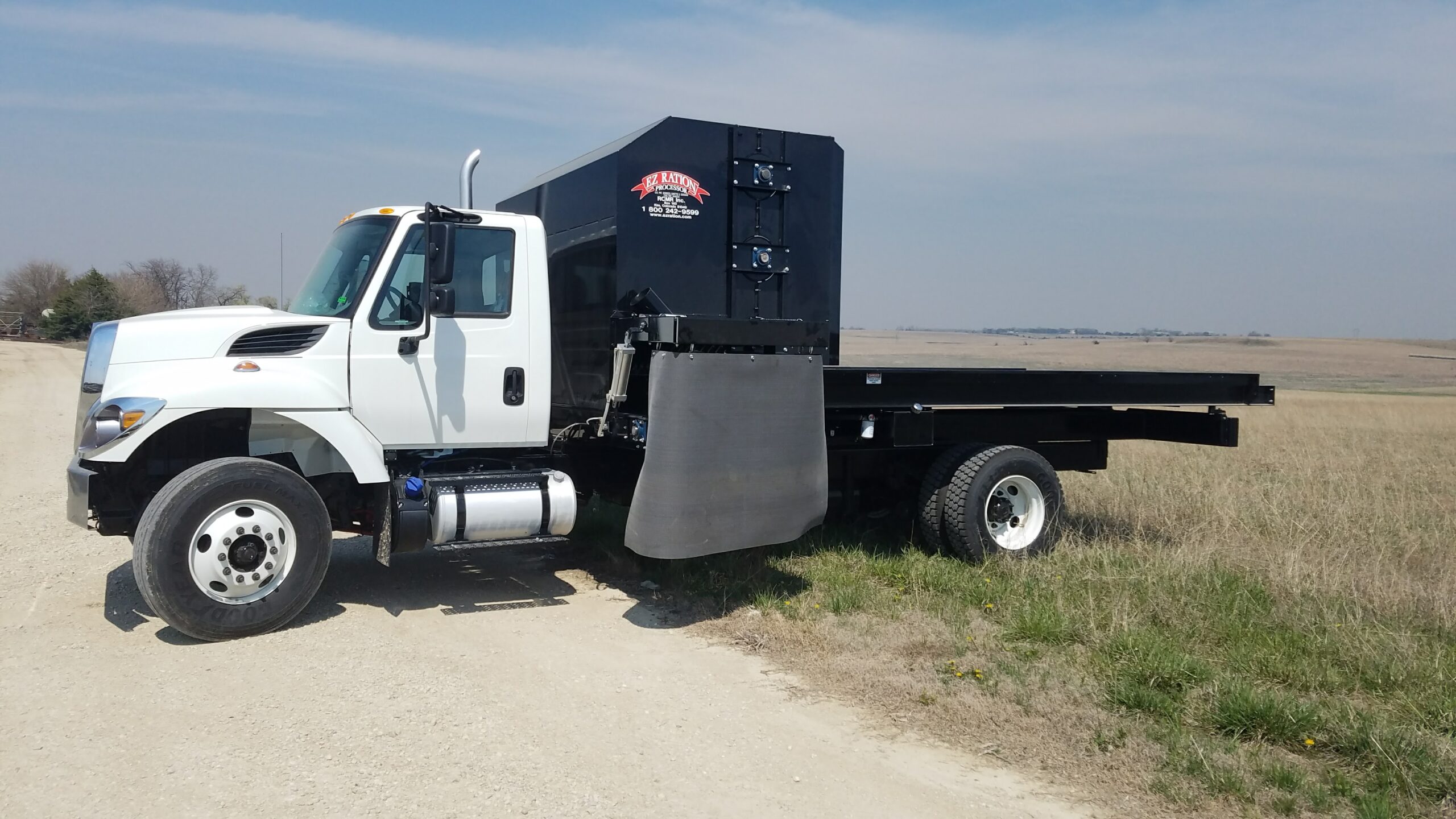

4Bale Truck Mount EZ Ration Processor
This is an example of a Four Bale Truck unit mounted on a late model 4×4 International truck–this unit has a complete scale system and an air discharge hood — Put chains on the steering axle and you can go nearly anywhere—Load up some good hay and some cheap filler feed –the patented ability to run the floor chains independently allows you to blend the roughage any way you want–change and adjust the blend for different classes of livestock and maximum feeding efficiency.
ONE MAN -ONE MACHINE – ONE OPERATION
6Bale Truck Mount EZ Ration Processor
This is an example of a 6 Bale Truck Mounted EZ Ration Processor mounted on a very nice 6X6 truck –It also has several options including the air discharge hood, wings, and scales. This is a very nice unit– Units like this are Leveling Up the Cattle Feeding Industry — Feeding Better, Quicker, & Cheaper

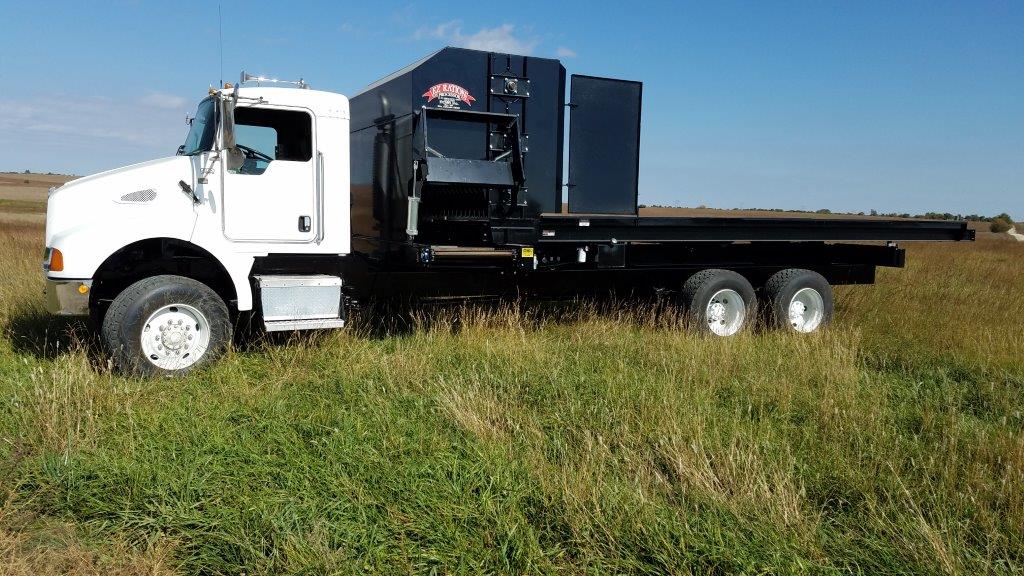

6Bale Truck Mount EZ Ration Processor with Grain attachment
This is a sharp 6bale Truck mounted EZ Ration Processor with a Grain attachment the air discharge hood, an air grain lid, and the complete scale system it also has the 8in knife hood extension for stacking 3×4 or feeding round bales. It is recommended, but not absolutely necessary, these units go on tandem trucks as you can see, they are pretty long – they require a frame length of 235 inches from the back of the cab to the center of the tandems. What a nice unit that can really carry a lot of feed.

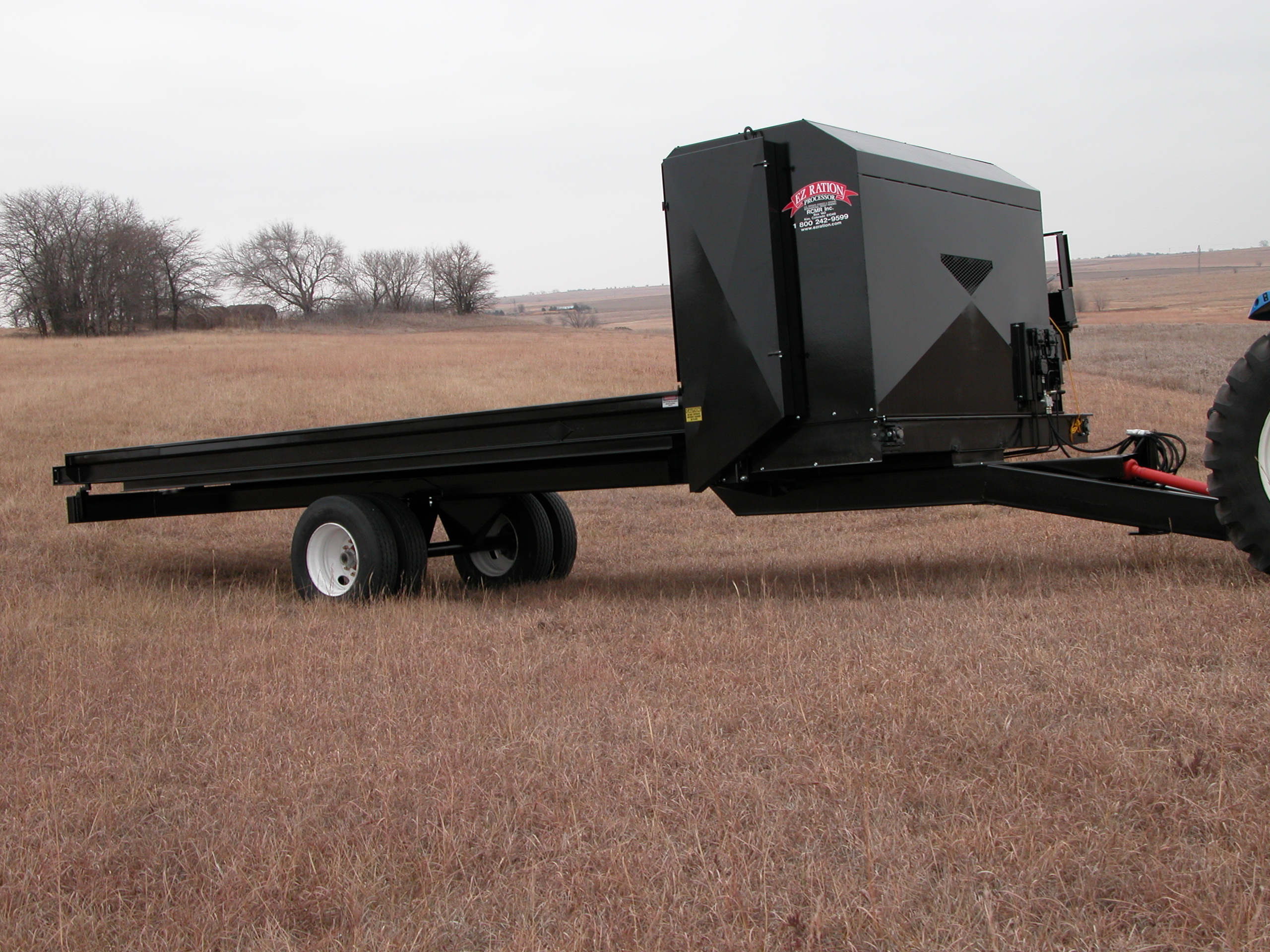

4Bale Trailer Mount EZ Ration Processor
This 4Bale Trailer Mounted EZ Ration Processor has a Discharge Hood and independent floor scales. —The 4Bale unit does not require a high horse power tractor, a 100 to 120 horse power tractor with 16 gpm hydraulic output is sufficient. It requires one set of hydraulic outlets to drive the floor chains and a thousand speed PTO drive to run the knives and discharge conveyor. Like all EZ Ration Processors, it can blend two different types of hay/feed in any desired ratio and is probably the most problem free processor on the market.
6Bale Trailer Mount EZ Ration Processor
The 6-Bale Trailer Mounted EZ Ration Processors comes standard with a single axle and duals. Scales, a grain bin attachment with a hydraulic or manual grain bin lid, a second axle with suspension system, 8in knife hood extension for stacking 3x4s or feeding round bales, and hydraulic or manual discharge hoods, are all options.
6Bale or 12Bale Trailer Mount EZ Ration Processor with Tandems and a Suspension System
The 6bale trailer mount with tandems and a suspension system has been our most popular model and rightfully so.
The tandems and the suspension system allow for a much smoother ride and better weight distribution, which also adds to the longevity of the unit. When the 8in knife hood extension that comes with the tandem axle option is installed 3×4 bales can be laid on their side and stacked, turning the 6-bale into a 12-bale unit. While still allowing the floors to run independently and create varying blends from two different types of hay. (the 8in knife hood extension is not installed and shown in the picture)
Scales, a grain bin attachment with a hydraulic or manual grain bin lid, and hydraulic or manual discharge hoods, are all options as well.

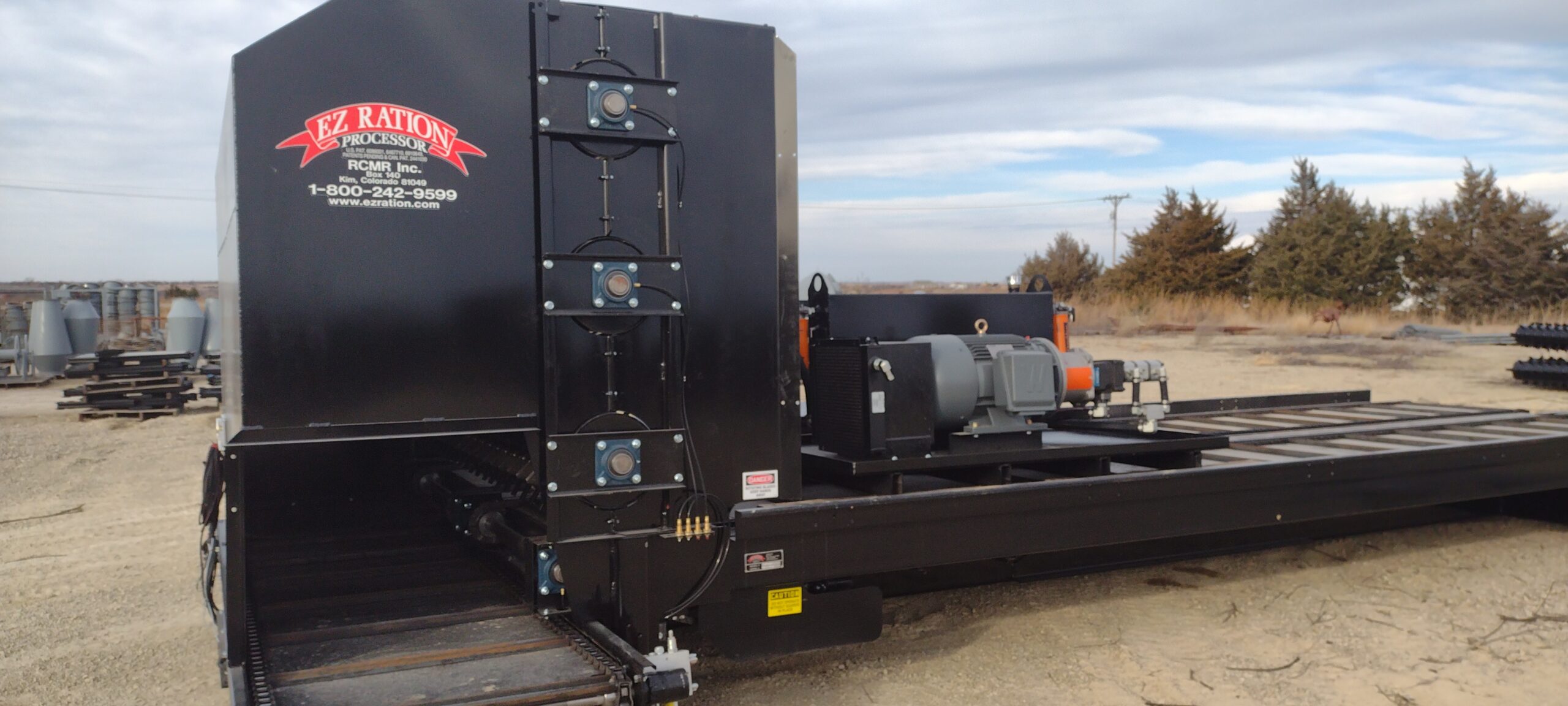

4 & 6 Bale Stationary EZ Ration Processor with touch screen controls

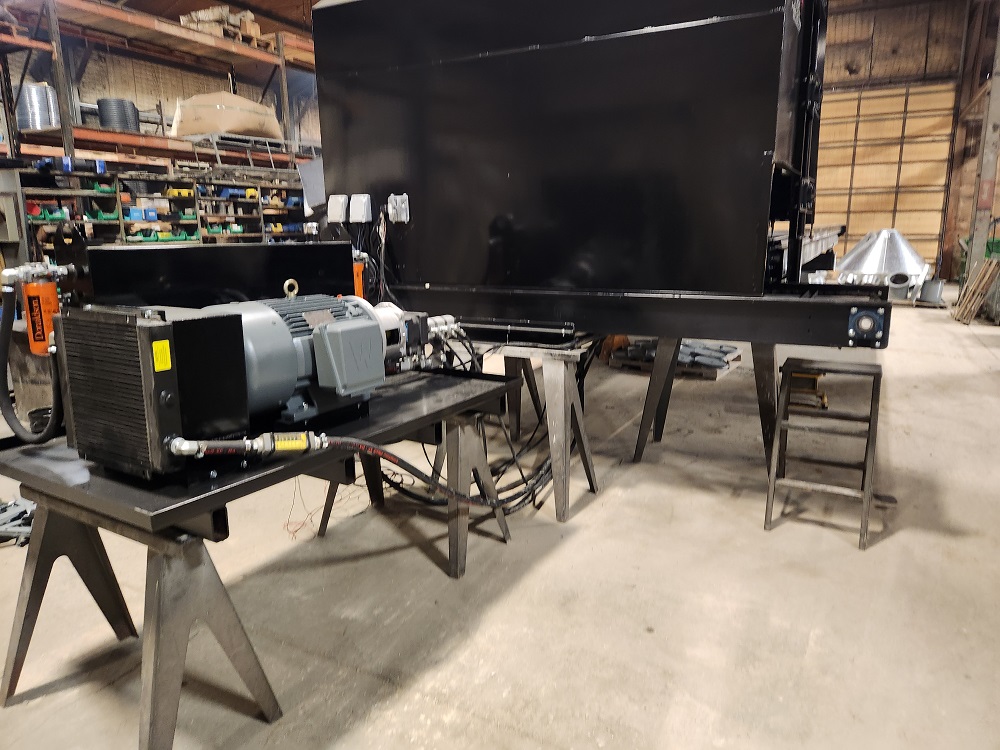

Electric over Hydraulic Stationary EZ Ration Processor with Touch Screen Controls. The same left and right floor speeds control independently and the same proven system with the very popular touch screen controls that has been used for years in our hydraulic truck mounted units.
It comes complete with 50HP 1800RPM 3Ph 60Hz Electric Motor, Special Hydraulic Pumps that will directly hook to the electric motor, a hydraulic radiator for extended/continual 8Hr running, a mounting platform to hold motor/pumps, a cooler, and a Hydraulic reservoir.
Just have your electrician wire it into your system and you are good to go. Scales are an option. The Scale option comes with two complete scales systems that weigh the bales on the left floor separate from the bales on the right floor, which provides assistance in the blending of varying ratios by weight.
Options
Stake Pockets
Stake Pockets give the producer the option of adding sideboards on one side and down the middle — With the sideboards the producer can feed silage on one side and a bale of hay/feed on the other side and mix the two in any desired ratio—If silage is an option where you live go to our EZ Ration Calculator page and put in you own hay/feed and silage test and see just how cheap you could feed– We have had customers that have really hit a home run utilizing the EZ Ration Processor to blend silage with dry processed roughage
Grain Attachment
Our Grain Attachment gives the producer the option of adding grain in various amounts to the ration while delivering it to the feed bunk. – It is available on both the Trailer Mounted and the Truck Mounted models. There is a air activated lid option available on the Truck Mounted version as well — Adding the Grain Attachment to your EZ Ration Processor really increases your feeding options — From helping the cows out with a little extra energy from time to time to helping that first calf heifer breed back to weaning/growing your calves to putting a pound or two on the old cull cow or bull before they go to market, it is well worth the extra money!
Independent floor scales
Our new scale ready model EZ Ration Processor is designed with the floor split so the producer can weigh the hay on the left floor chain independently from the hay on the right floor chain* a third scale system can be added for the grain attachment** now the producer will know the exact amount of each feed source fed.
Discharge hoods
* Manual
* Air Activated
(for truck mounted EZ Ration Processors)
* Hydraulic Activated
(for Tractor Pulled EZ Ration Processors)
Our discharge hoods allow you to feed processed hay during high winds and still get the hay in the bunks or a nice windrow.
(not avialable on Pickup Pull Models)
Knife Hood Extension for stacking 3x4x8 bales
Knife Hood Extension for stacking 3x4x8 bales
The 8 inch Knife Hood Extension allows the producer to stack the mid sized 3x4x8 bales dramatically increasing the amount of hay that can be processed – blended and fed in one loading — you can note by the picture a conventional 4x4x8 bale in front and the 3x4x8 bales stacked behind – Note the knife hood extension is all that is needed for stacking the midsized bales on 4 and 6 bale truck models and the 4 bale trailer model — However the 6 bale trailer model requires the stacking kit which includes this extension as well as a second axle and other items listed below under that option

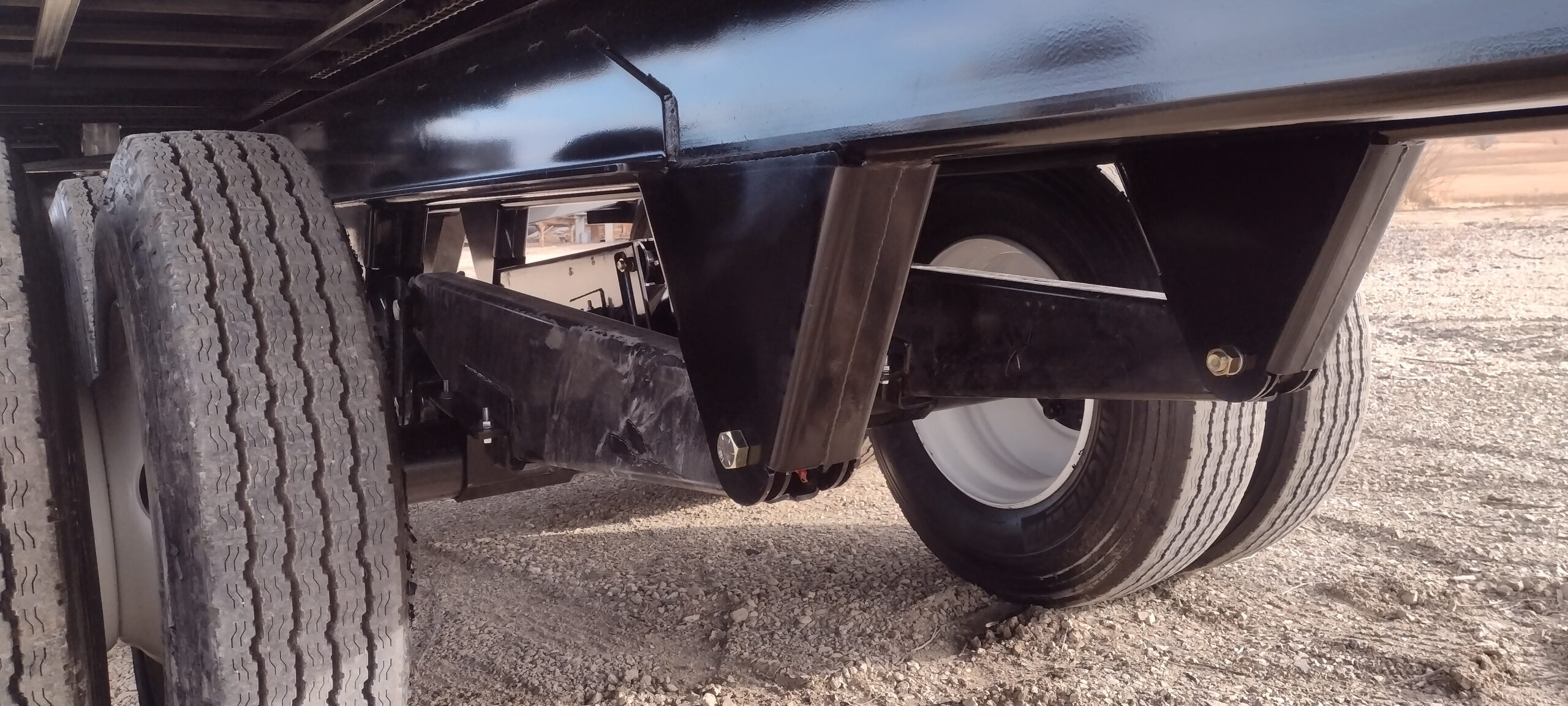

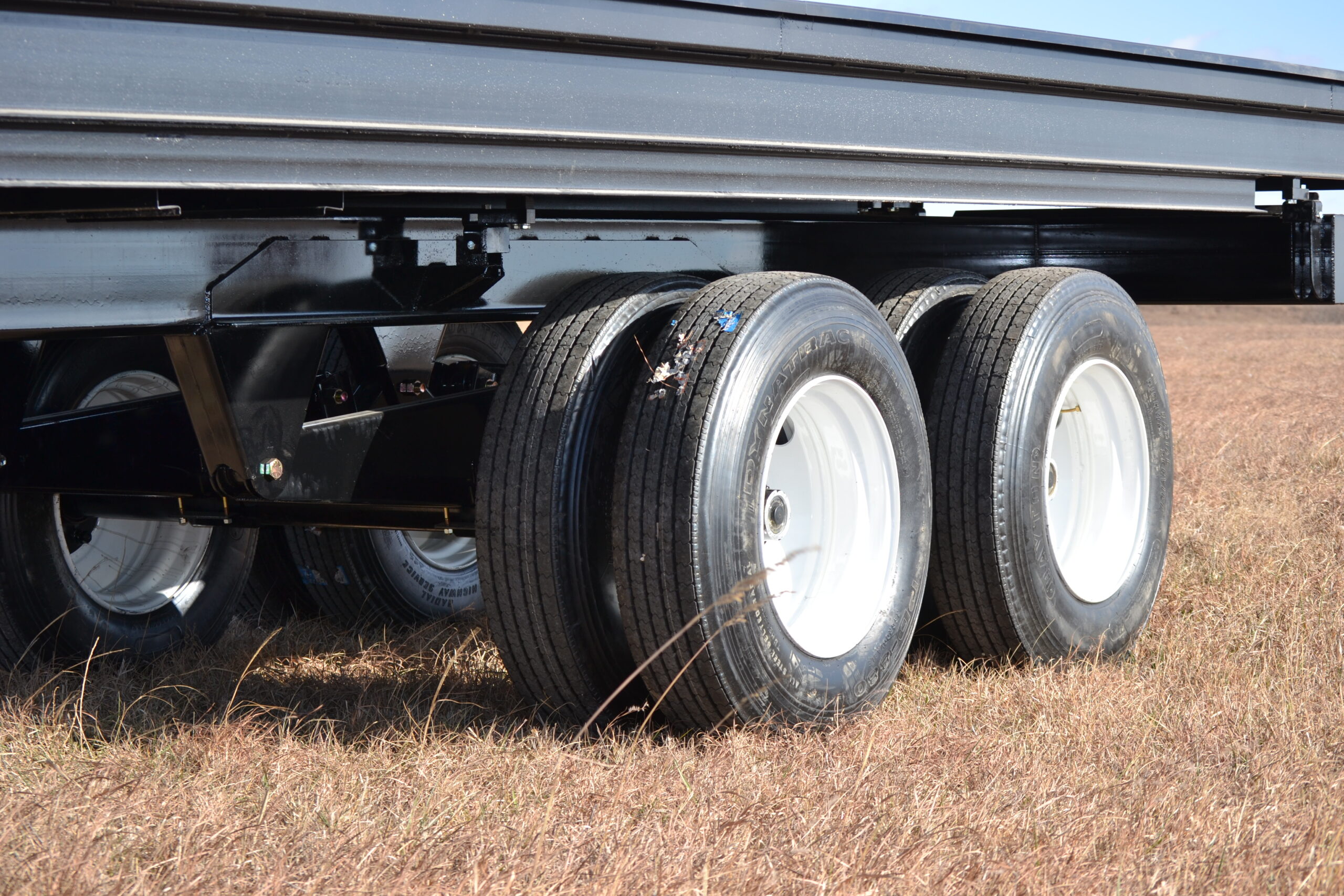

Tandem Axle with a Suspension System for 6Bale Trailer Mount
This has been a very popular option for 6Bale trailer mounts even if the customer does not plan on stacking the 3×4 bale and turning it into a 12Bale unit. The smoother ride and better weight distribution certainly add to the longevity of the unit.
Stacking Midsize Bale Kit Option for 6 bale Trailer mount
The tandems, the suspension system, and the 8in knife hood extension are all part of the Stacking Midsize Bale Kit and are recommended when you want to stack 3x4s and have a 12bale unit.
Super singles
Some customers have been requesting Super Single tires for more flotation and they are now an option on Tractor Pull EZ Ration Processors
Wings
Wings are an option. They are heavy metal doors behind the knife drum housing that prevents any spillage off the side while processing the bales — Feedlots prefer them to keep any spillage out of the alleyways

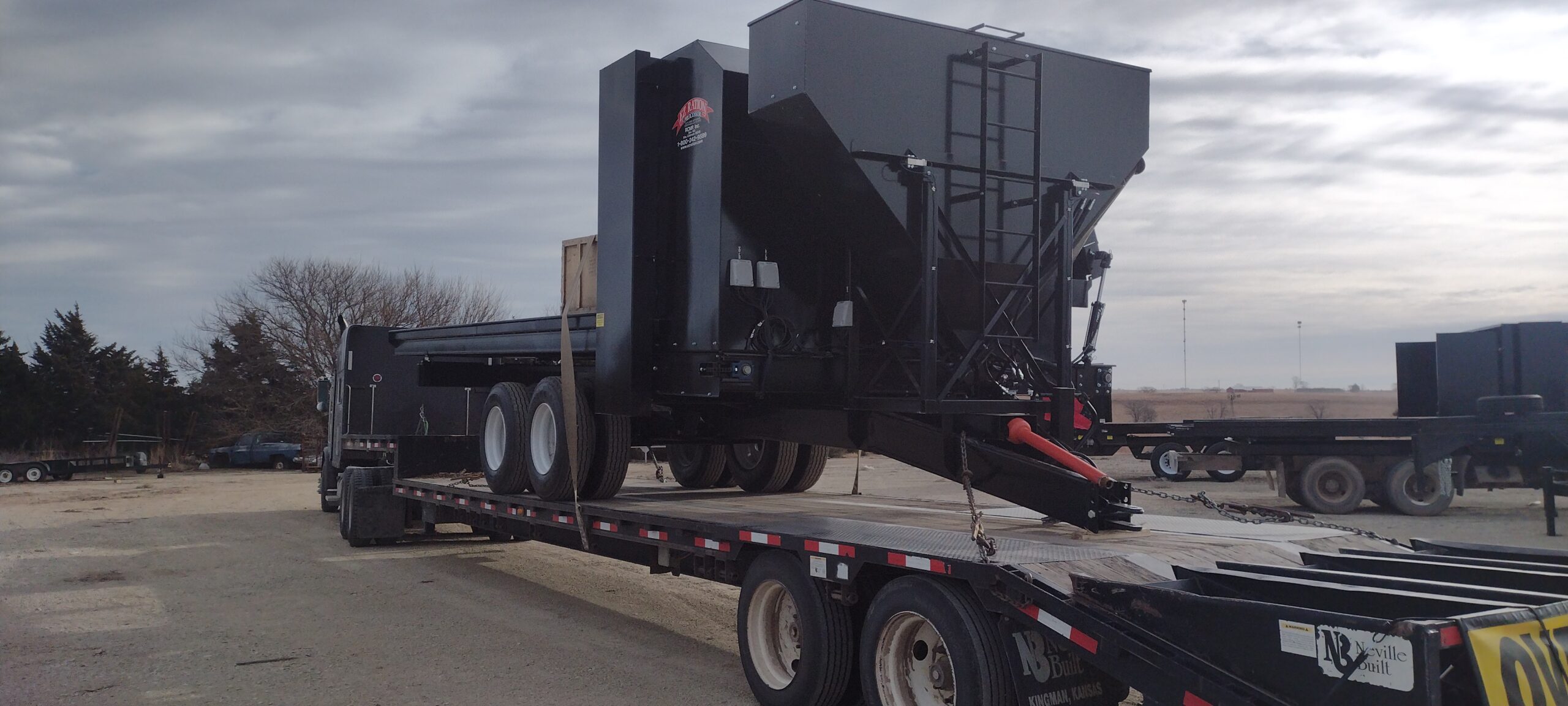

Delivery / Trucking
We can help you find a trucker or trucking company if need be. We have a several affiliated trucking companies and independent truckers that have delivered numerous EZ Ration Processors to other customers in the past.
If you have your own trucks or have a company that you like to use, we will help you get them all the information they will need.
Most EZ Ration Processor models will require a step deck and, in some states, wide load permits are required. Every EZ Ration Processor (tractor pull or truck mounted) is 11 feet 6 inches wide. The tractor pull models are typically 10 feet 6 inches tall. The truck mounted units can vary according to the trucks they are mounted on. The length and weight can vary according to the model and options.
Wide load permits are generally not required by the end user after delivery when the product is in use, because it is an implement of husbandry, (you feed cattle with it) –check your state regulations.
