Models

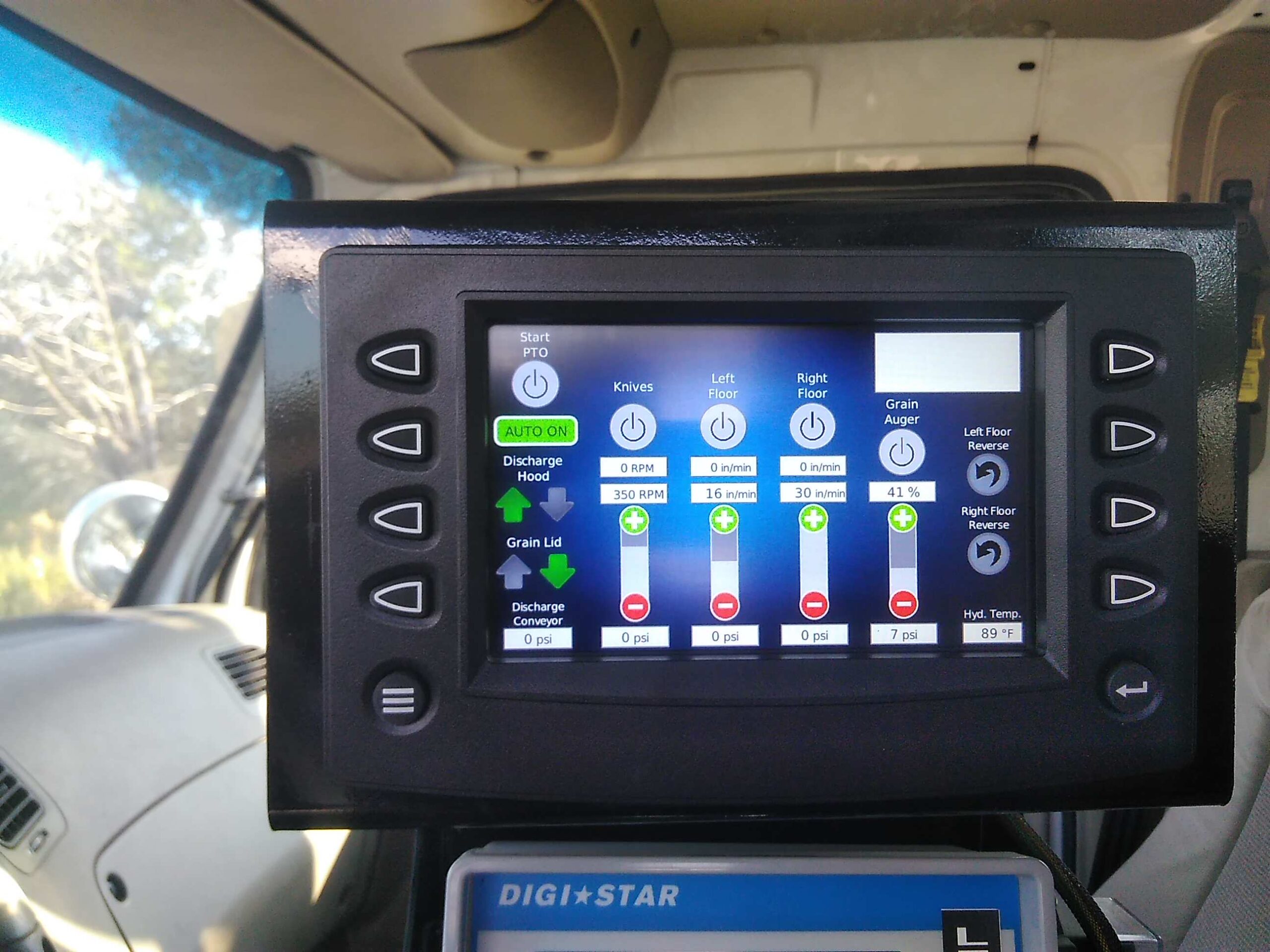

Touch Screen Controlled Hydraulic Drive 4Bale Truck Mounted EZ Ration Processor

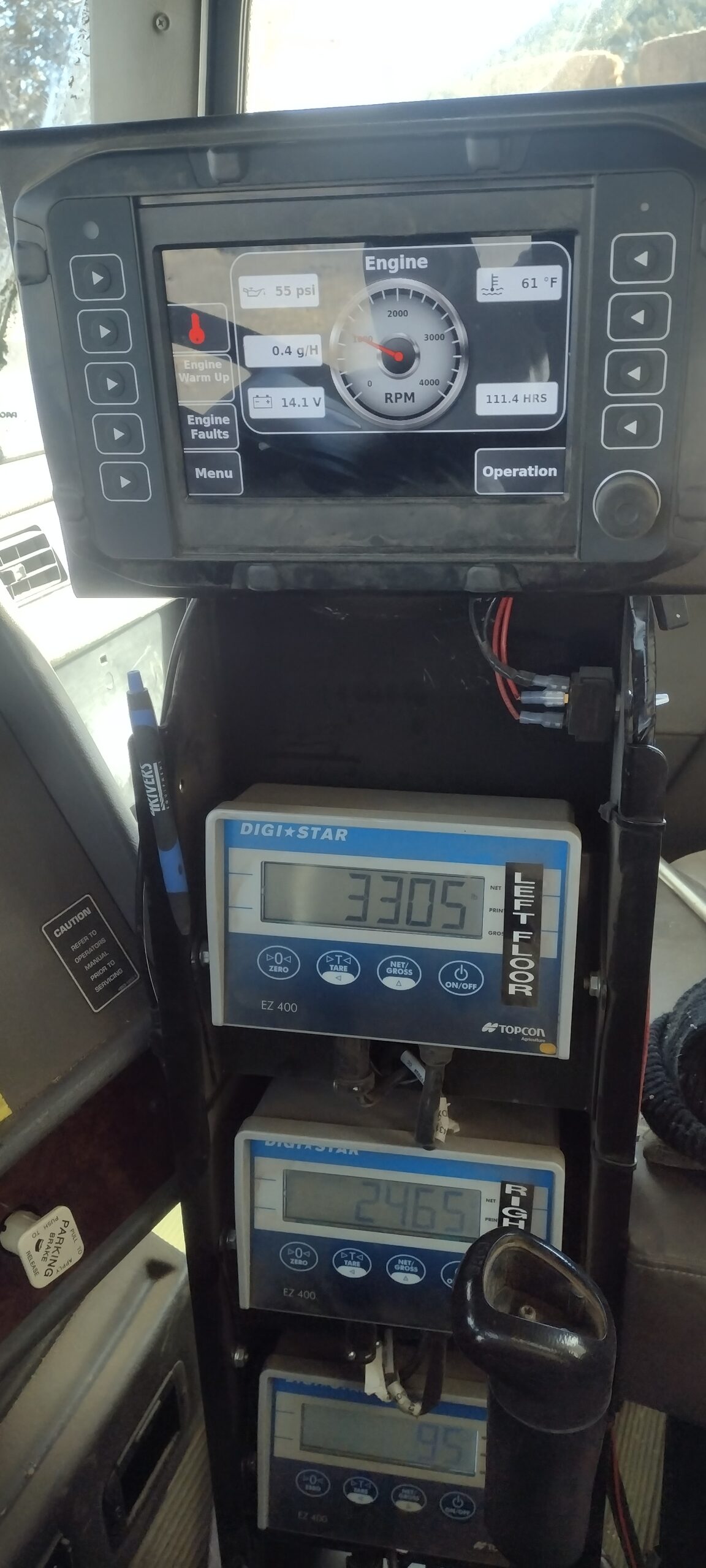

Here is an example of our new Computer Controlled Hydraulic drive four bale EZ Ration Processor with nearly all the bells and whistles — Grain attachment with an air activated lid — air activated Discharge hood — complete Scale system –nearly everything you can get to increase the efficiency in your feeding operation is on this unit

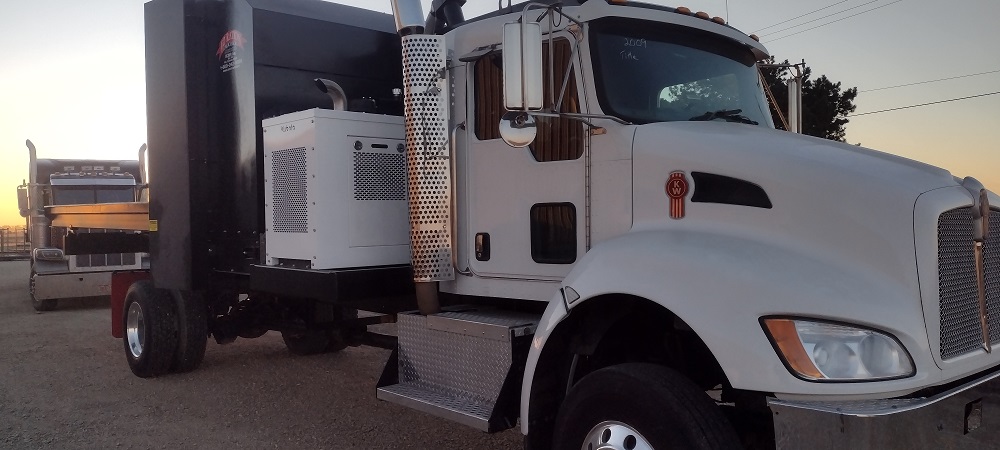

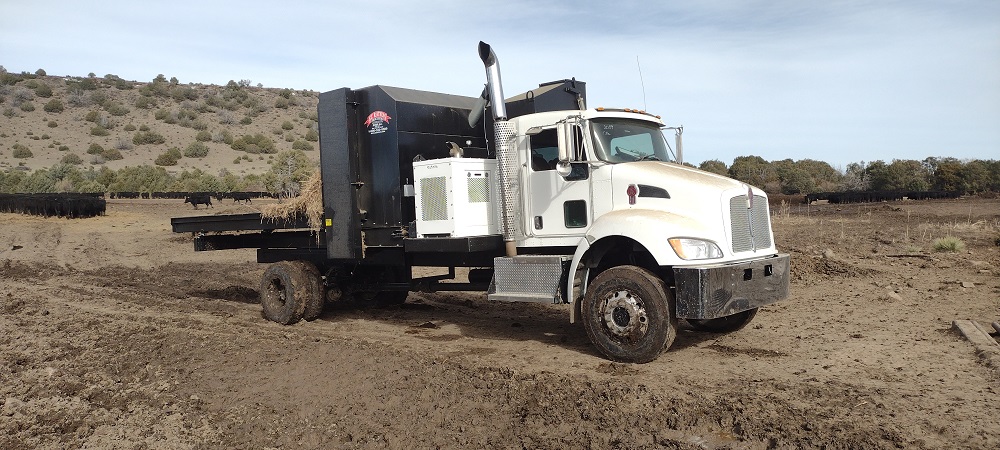

New Kubota Powered Touch Sreen Controlled Hydraulic Drive 4 & 6 Bale Truck Mounted EZ Ration Processor

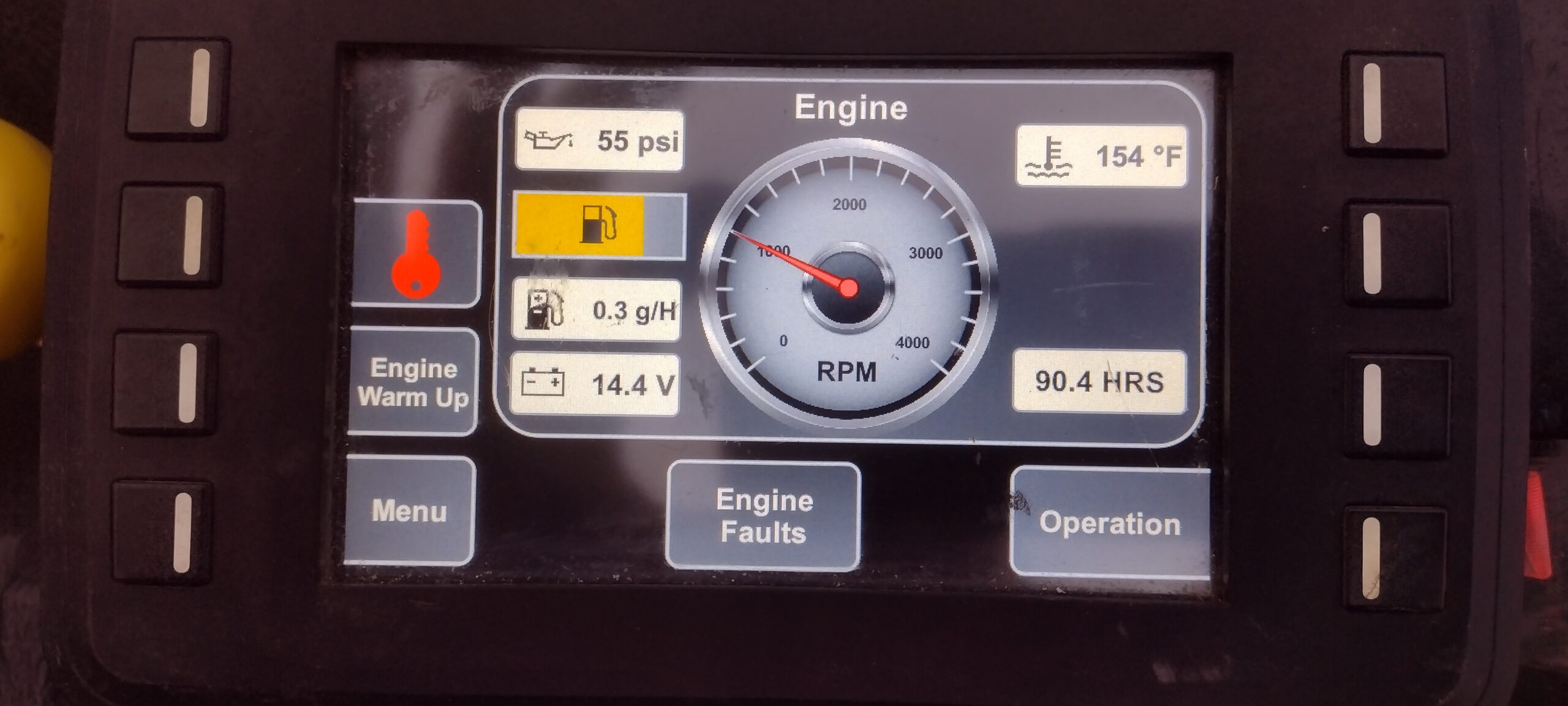

Our new Hydraulic all Self-contained Kubota Powered 4 or 6 bale Truck mounted EZ Ration Processor. It is compatible with virtually any truck. No more having to keep the truck wrapped to 1000 RPMs to power the EZ Ration Processor. It can go on a truck with either a standard or automatic transmission. It has the same touch screen controls used on the hydraulic model and the touch screen also controls all the functions and the read outs for the Kubota motor. It is pretty awesome. If you want the latest and the greatest here you go.

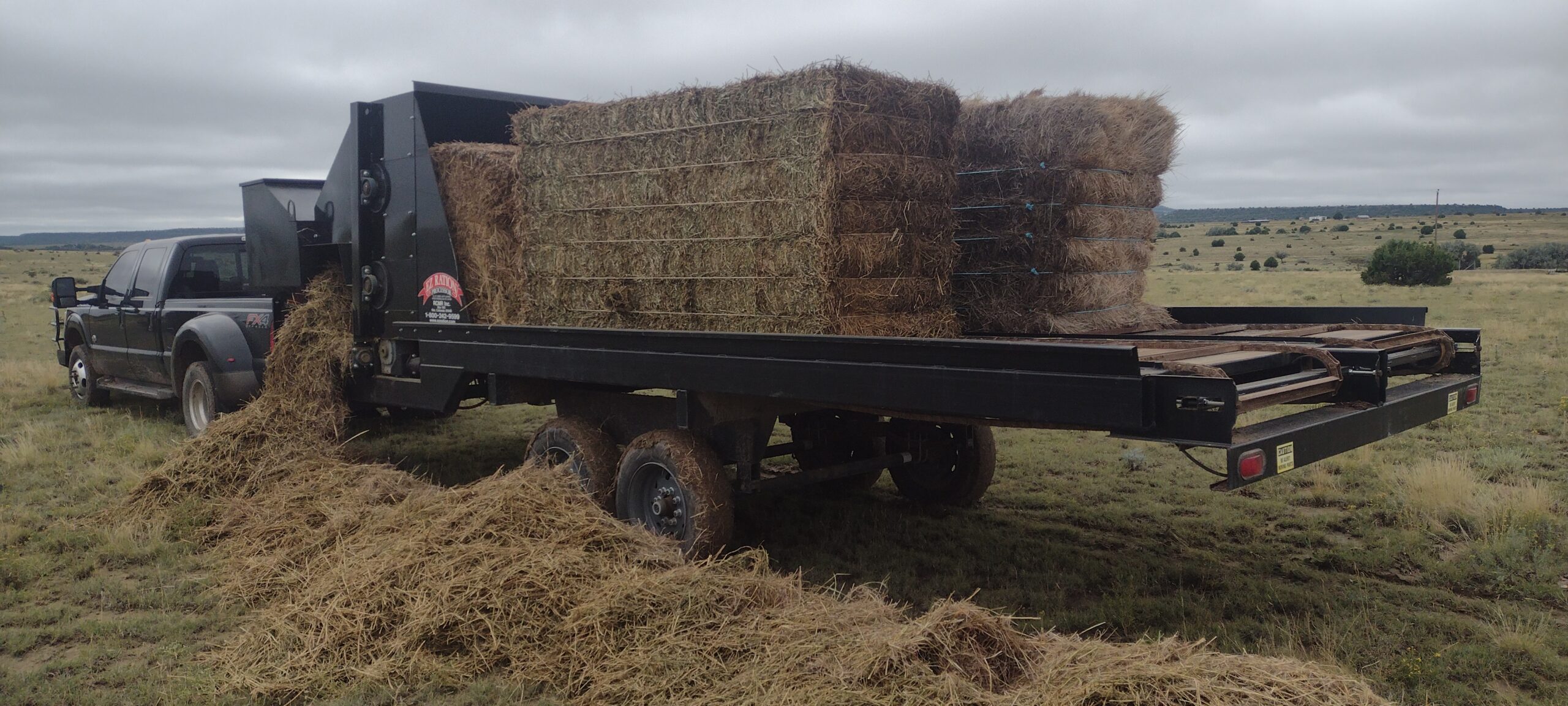

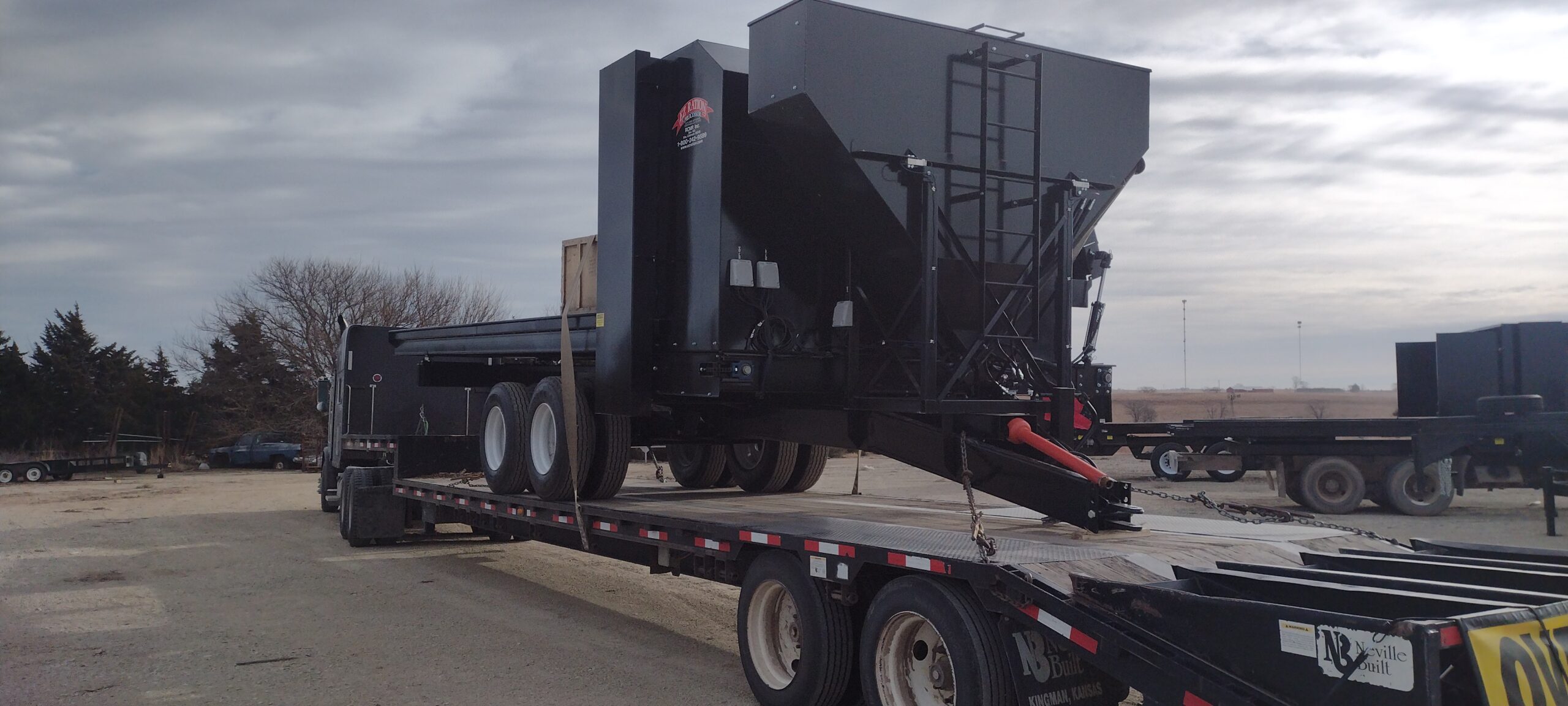

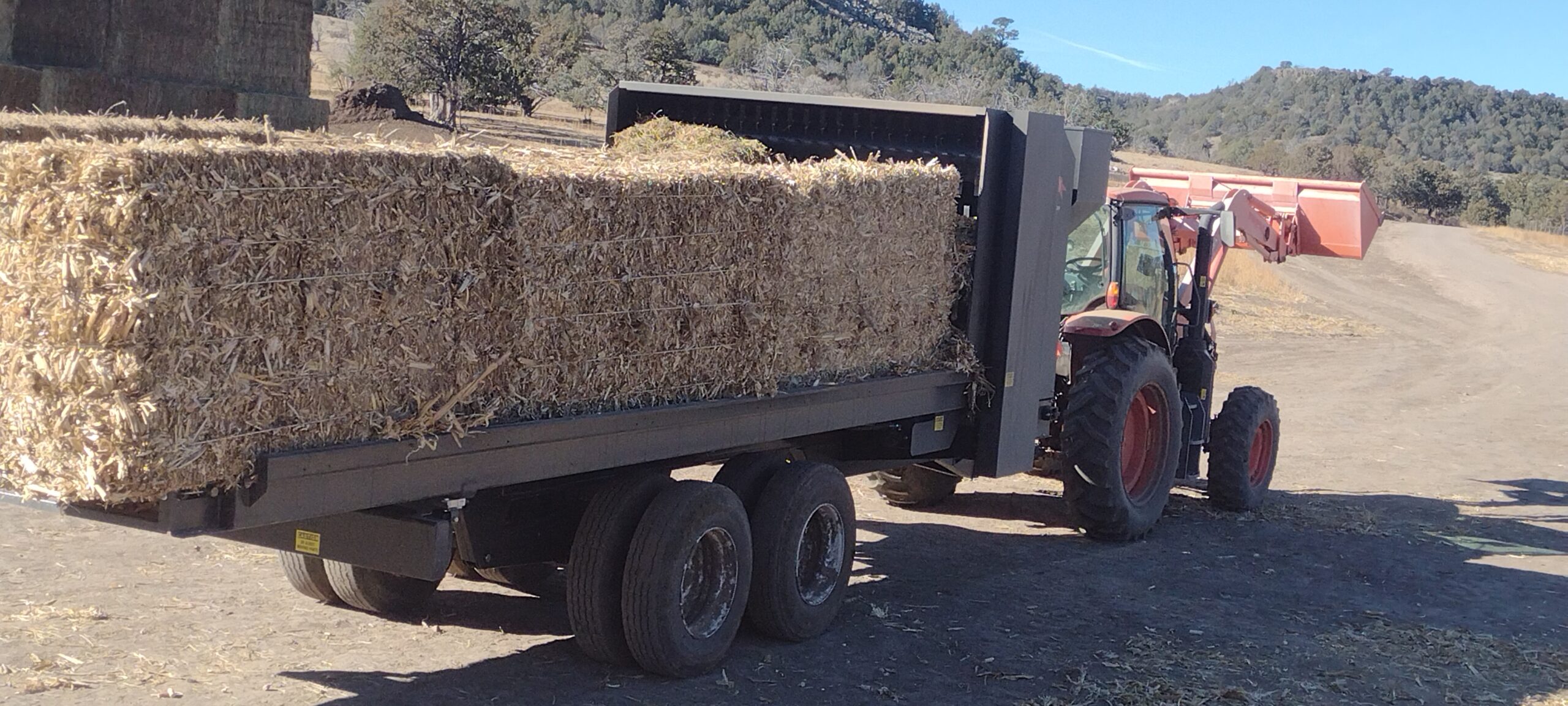

4Bale Pickup Pulled, Kubota Powered, all Self-contained, EZ Ration Processor with a Grain or Cube Bin

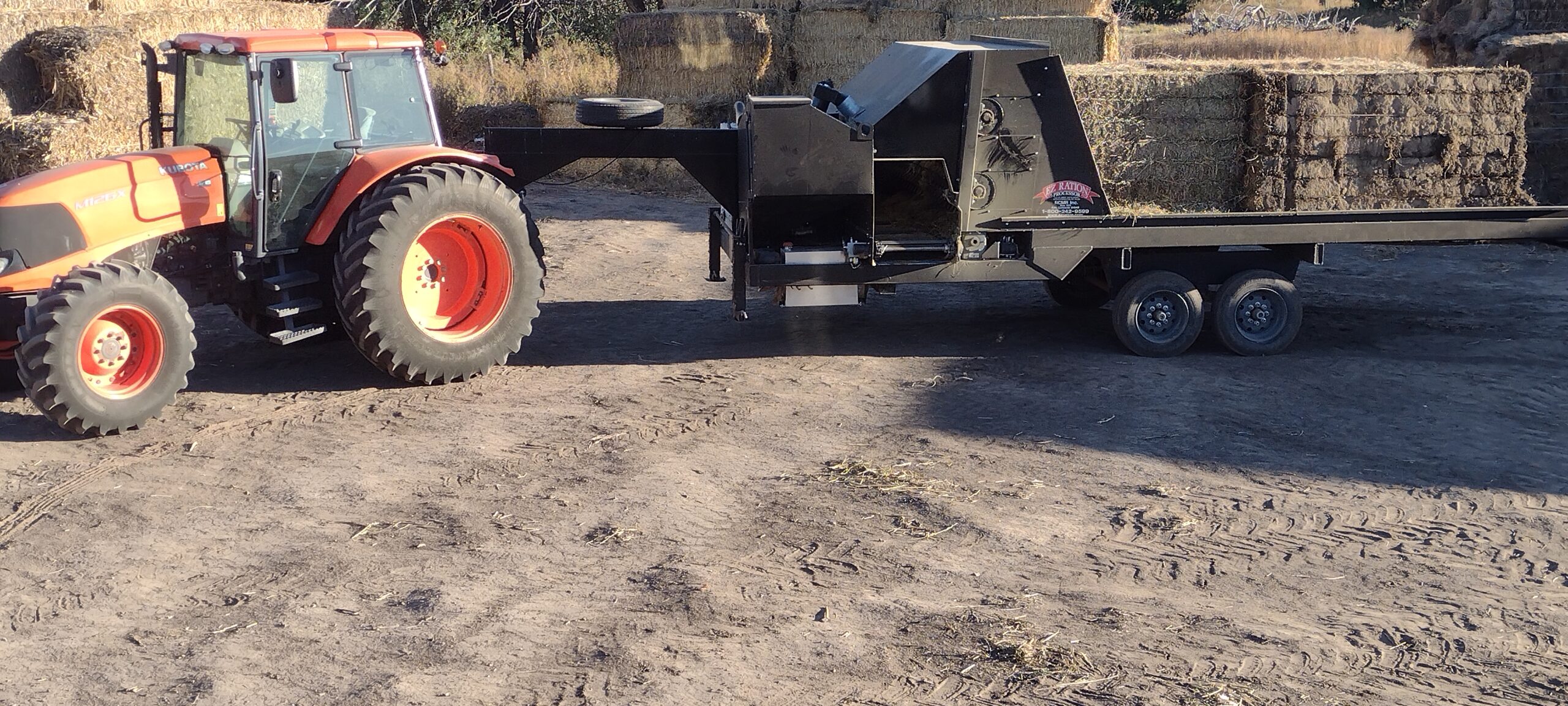

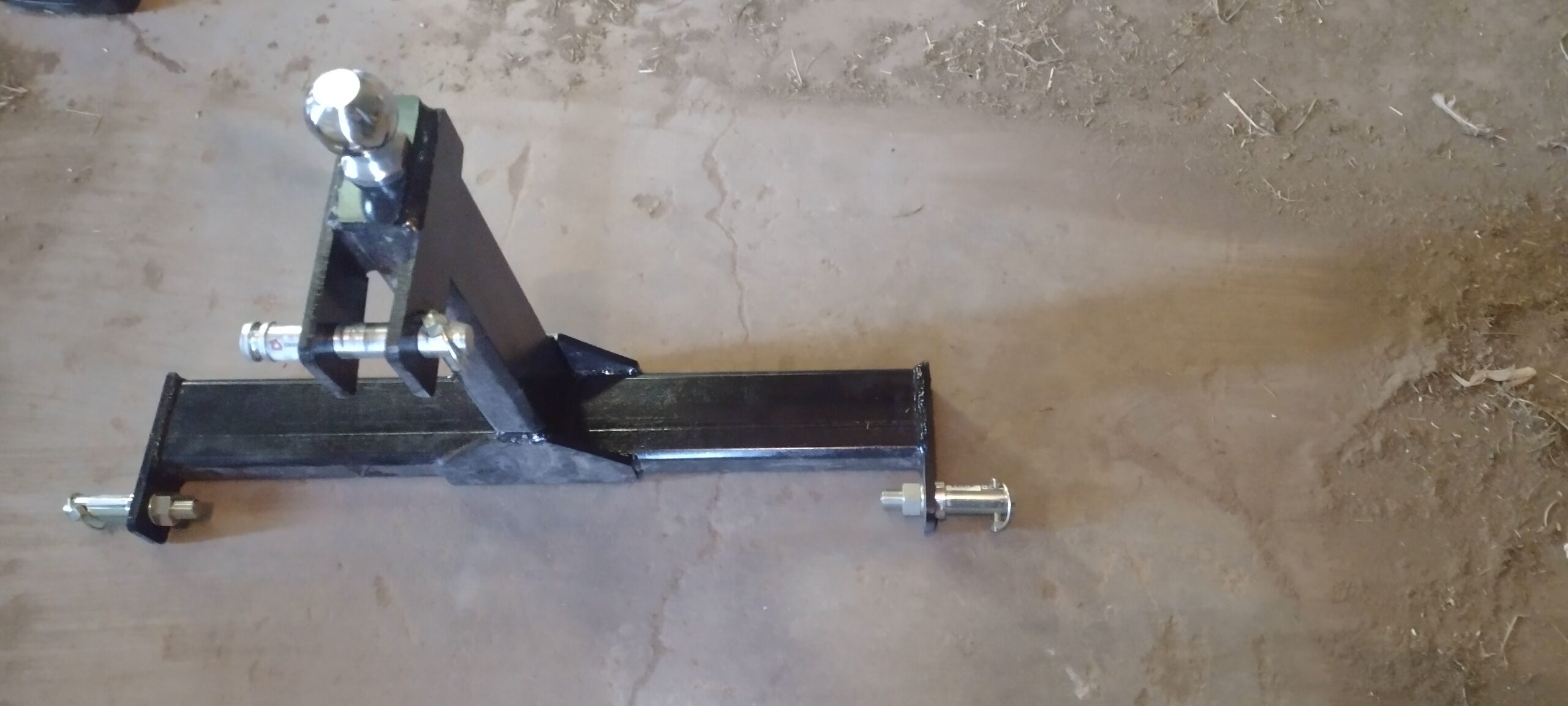

This is our new 4-Bale Pickup or Tractor Pull EZ Ration Processor. It has touch screen controls for both the Kubota motor and the EZ Ration Processor. It combines versatility with mobility. It pulls like a gooseneck horse trailer with same trailer plug-in for tail lights, brake, and turn signals. It can also be pull by virtually any tractor with a gooseneck ball attachment on the tree point.
They come standard with a grain (or cube) bin allowing for the blending of two different roughages and a grain or cubes. If you are spread out and need to feed everything better, cheaper, and quicker, here you go. With the grain bin you can create cost efficient growing rations for weaned calves and replacement heifers and still feed a roughage ration of a whole different blend to your running aged cows. Like all EZ Ration Processors, it can blend two different types of hay/feed in any desired ratio.
We are using this same Kubota Motor on our Truck mount self-contained models and they appear to have more power than the hydraulic units that we are running off the truck’s PTO.
Scales are not an option, but it has a program in it that if you know and put in the average weight of your bales it will calculate how much is being fed. It is a pretty cool set up. If you are looking to Level Up and maintain a lot of versatility this is the model is for you.

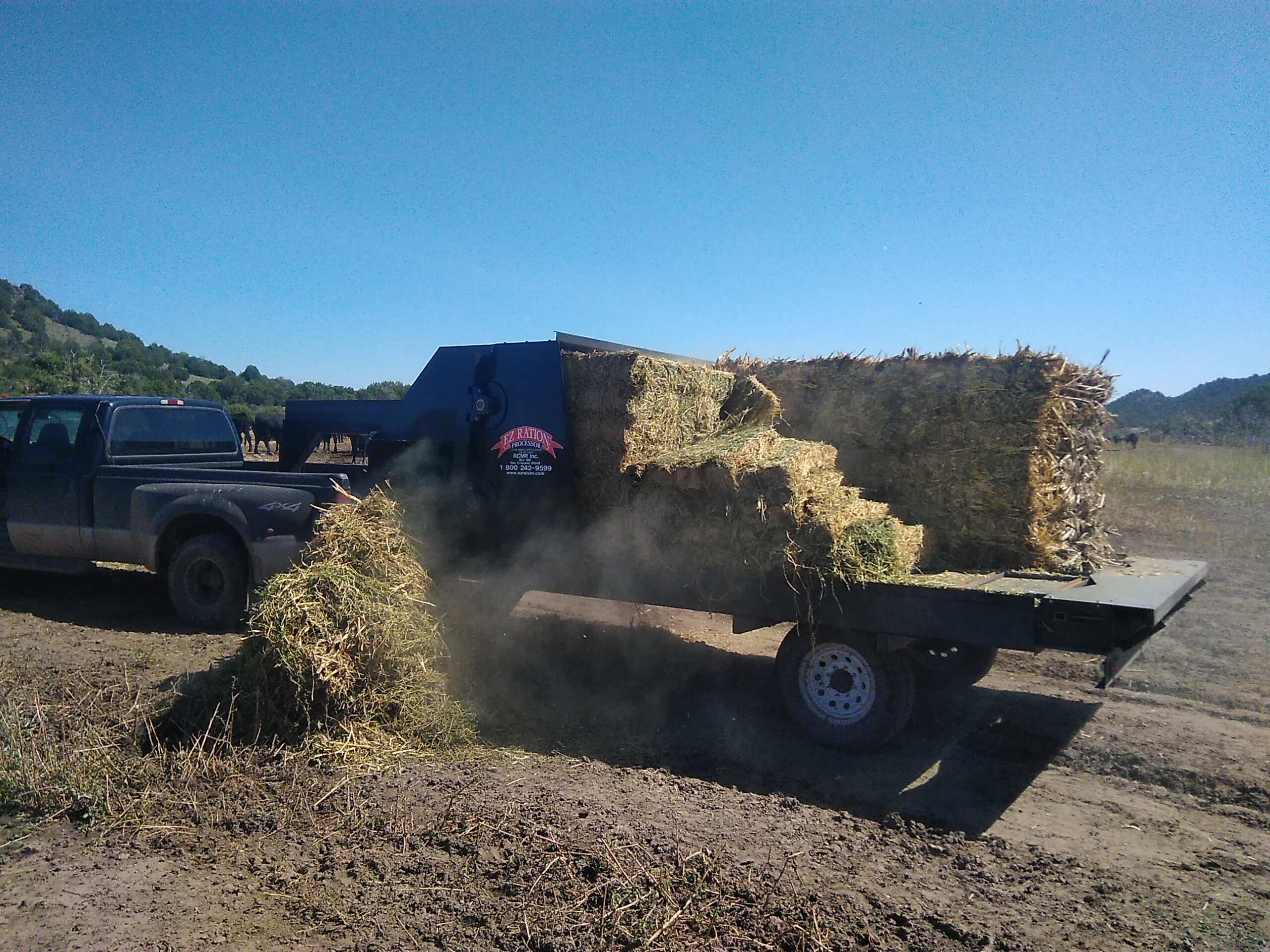

2Bale Pickup Pulled, Honda Powered, all Self-contained, EZ Ration Processor

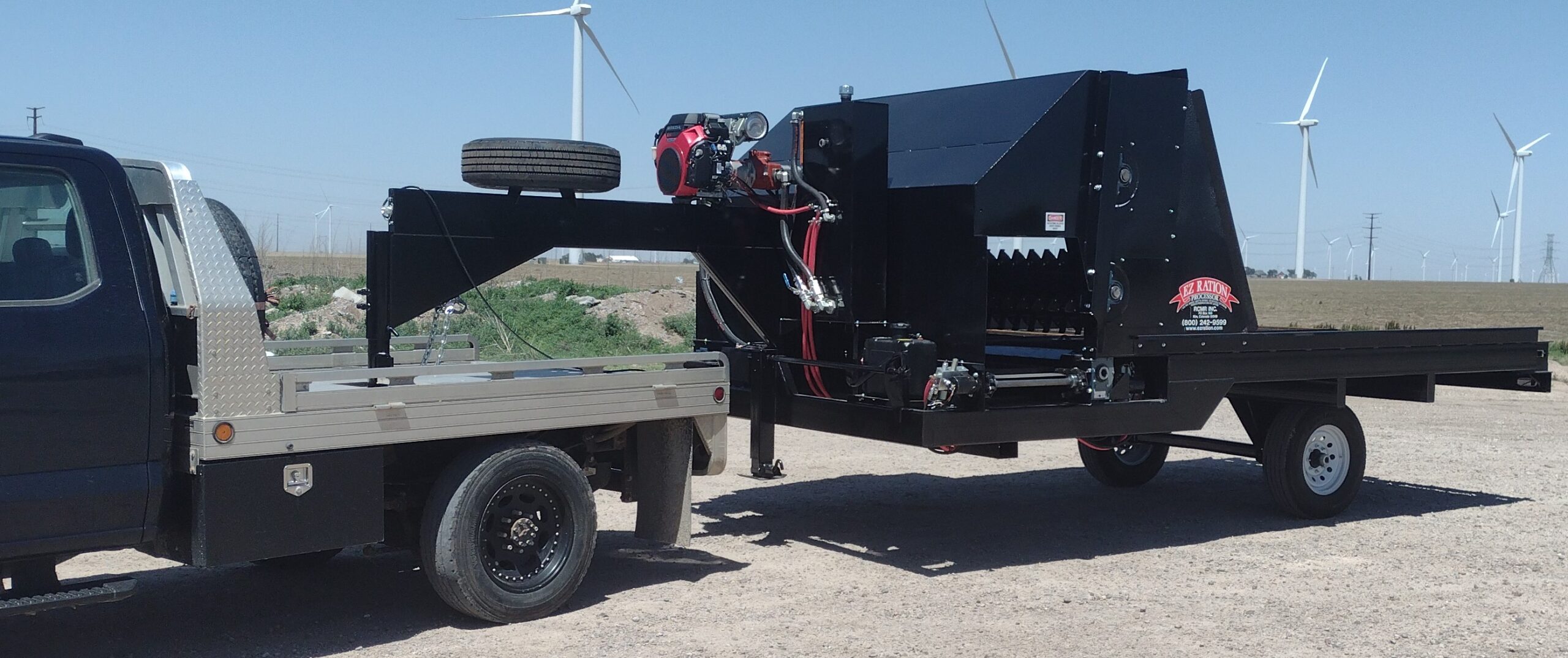

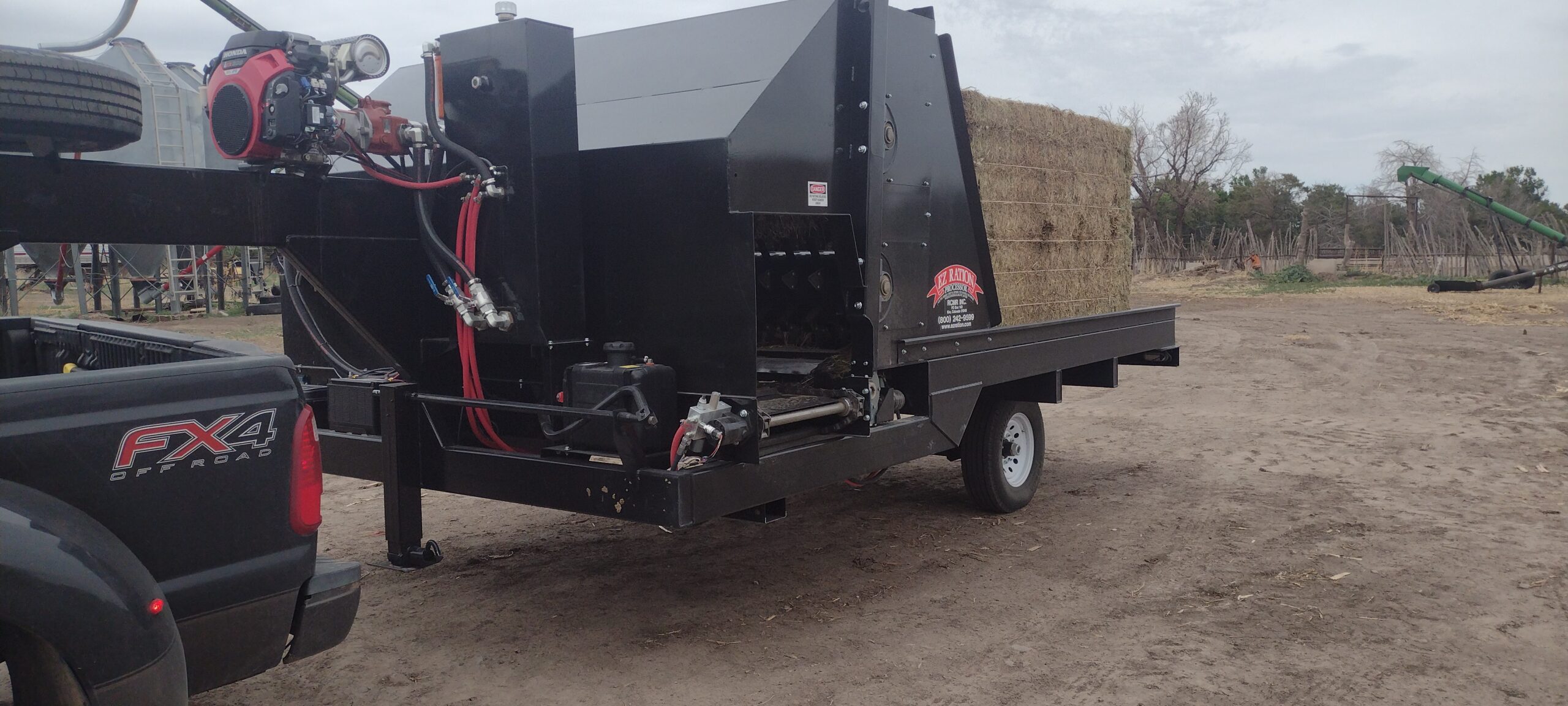

This is our 2-Bale Pickup or Tractor Pull EZ Ration Processor. It has touch screen controls for both the Honda motor and the EZ Ration Processor. It combines versatility with mobility. It pulls like a gooseneck horse trailer with same trailer plug-in for tail lights, brake, and turn signals. It can also be pull by virtually any tractor with a gooseneck ball attachment on the tree point. Like all EZ Ration Processors, it can blend two different types of hay/feed in any desired ratio.
Scales are not an option, but it has a program in it that if you know and put in the average weight of your bales it will calculate how much is being fed. It is a pretty cool set up. If you are looking for an econo version of an EZ Ration Processor to Level Up with this is the model for you.

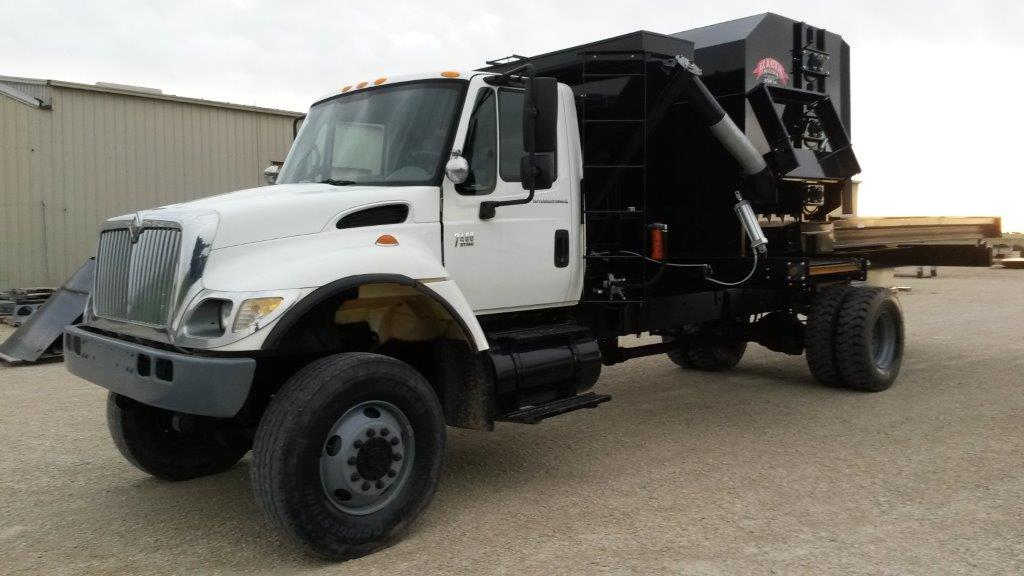

Conventional Drive 4Bale Truck mounted EZ Ration Processor with Grain
Here is an example of a conventional drive Four Bale EZ Ration Processor with the Grain attachment with an air activated lid — air activated Discharge hood — complete Scale system–On a 4×4 Truck – for Trucks with the MT653 Allison Transmission we recommend our conventional drive unit we have been building for years -we have been continuing to work on improving and perfecting this model for nearly 2 decades – this is a great unit for a 4×4 or 6×6 truck that has the MT653 Allison Transmission.

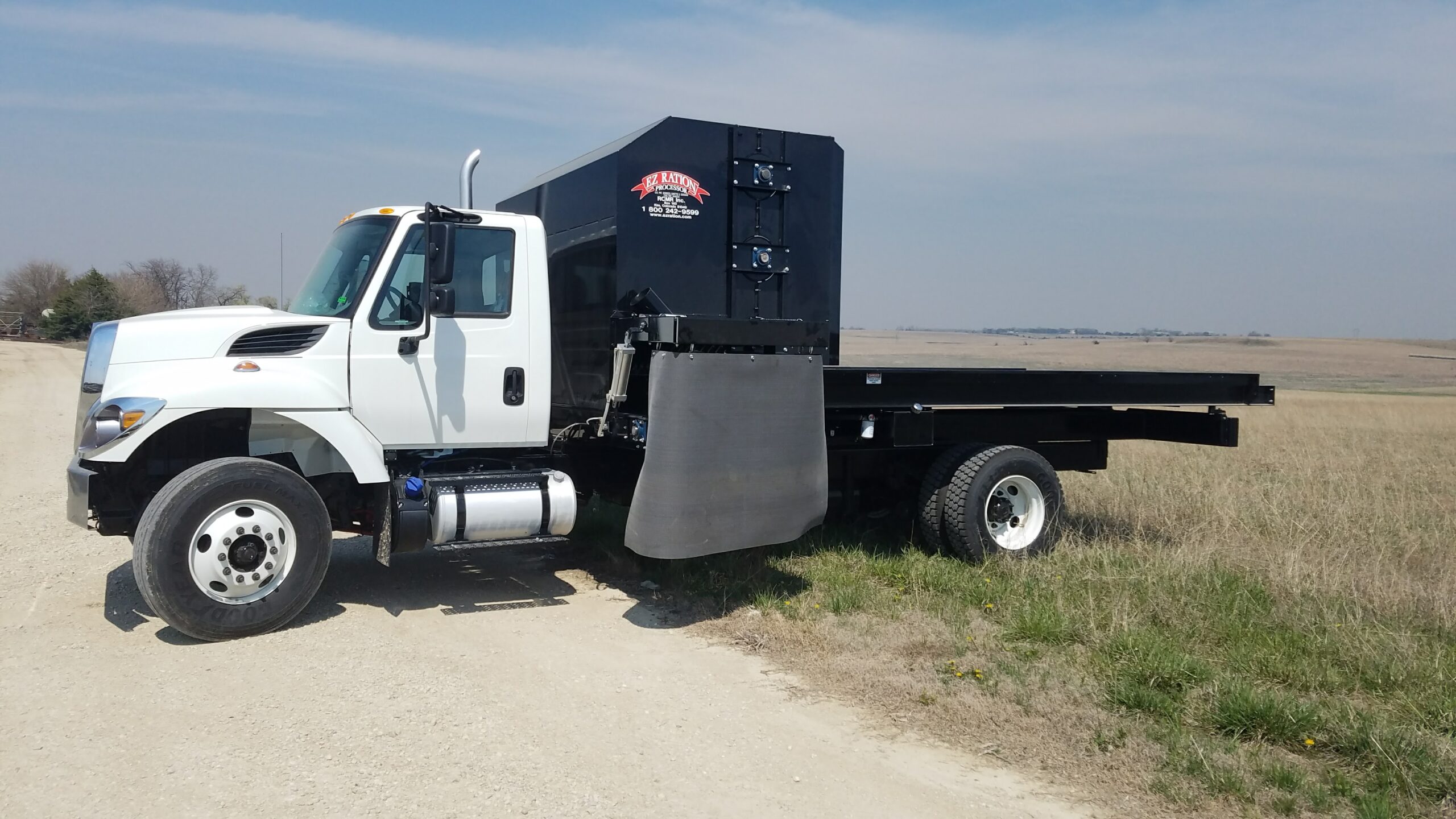

4Bale Truck Mount EZ Ration Processor
This is an example of a Four Bale Truck unit with a grain attachment mounted on a late model 4×4 International truck–this unit has a complete scale system, an air grain lid, and an air discharge hood — Put chains on the steering axle and you can go nearly anywhere—Load up some good hay and some cheap filler feed –the patented ability to run the floor chains independently allows you to blend the roughage any way you want–add some grain or cake for your replacement heifers, and you are set–change and adjust the blend for different classes of livestock and maximum feeding efficiency —
THERE IS NO BETTER – CHEAPER – QUICKER WAY TO FEED COWS –ONE MAN -ONE MACHINE – ONE OPERATION
6Bale Truck Mount EZ Ration Processor
This is a 6 Bale Truck Mounted EZ Ration Processor mounted on a very nice 6X6 Peterbuilt — This is a very nice unit– Units like this are setting new standards in the cattle feeding industry — If you can’t get them fed with this setup — you can’t get them fed

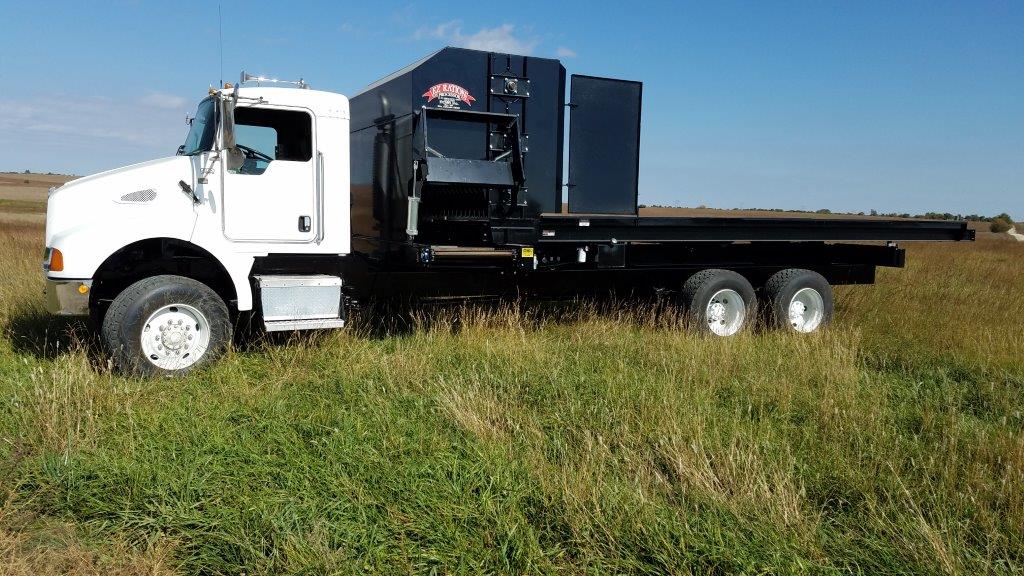

6Bale Truck Mount EZ Ration Processor with Grain attachment
This is a sharp 6bale Truck mounted EZ Ration Processor with a Grain attachment the air discharge hood,an air grain lid, and the complete scale system it also has the beater hood extension. We recommend these units go on tandem trucks as you can see they are pretty long – they require a frame length of 235 inches from the back of the cab to the center of the tandems. Man what a nice unit that can really carry a lot of feed

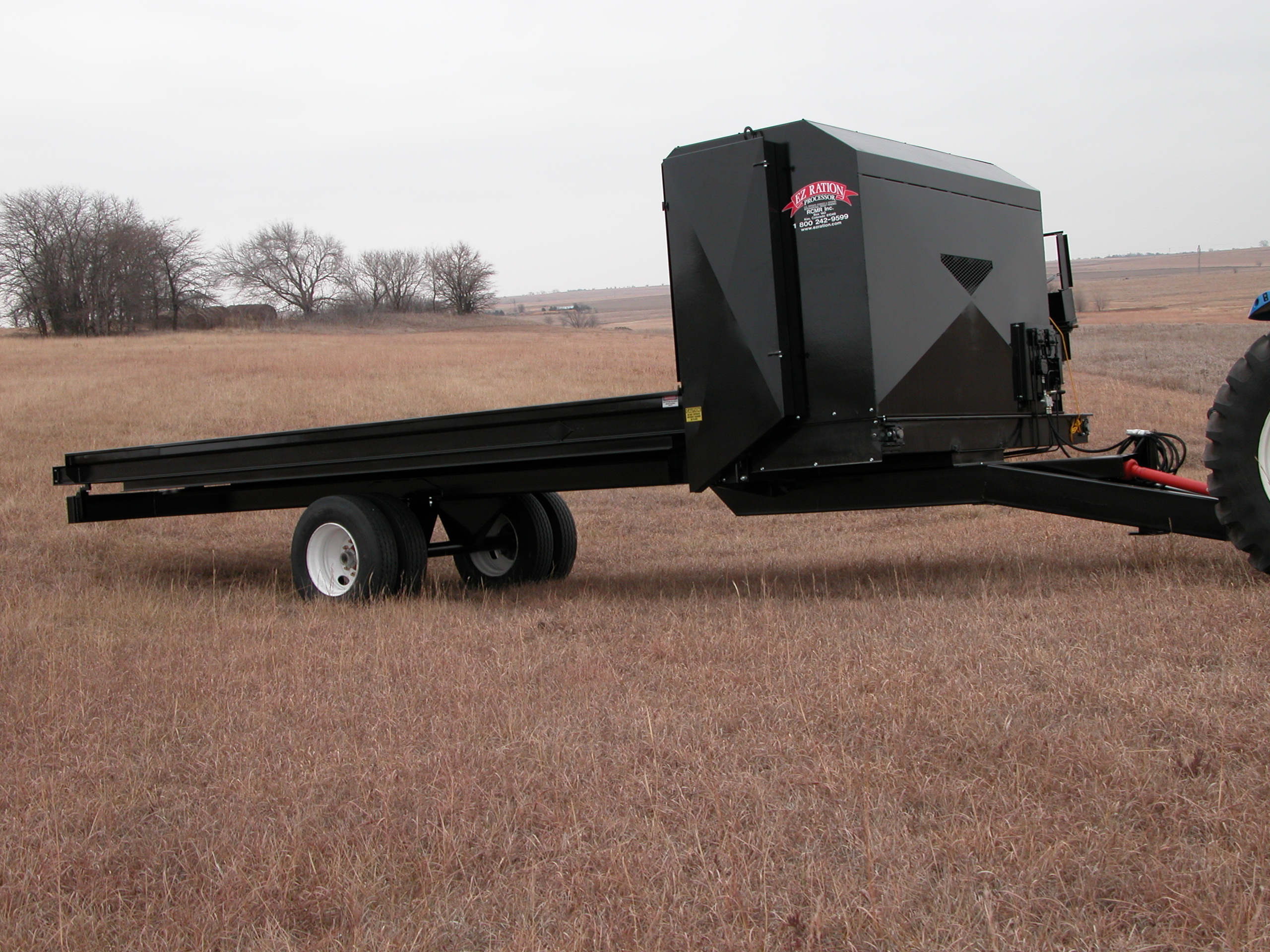

4Bale Trailer Mount EZ Ration Processor
This Four Bale Trailer Mounted EZ Ration Processor has a Discharge Hood and stake pockets—The Four Bale unit does not require a high horse power tractor, an 100 to 120 horse power tractor with 16 gpm hydraulic output is sufficient. It requires one set of hydraulic outlets to drive the floor chains and a thousand speed PTO drive to run the shredders and discharge conveyor. Like all EZ Ration Processors it can blend two different types of hay/feed in any desired ratio and is probably the most problem free processor on the market
6Bale Trailer Mount EZ Ration Processor
Six Bale Trailer Mounted EZ Ration Processors are probably our most popular units * they carry 50% more hay for only a few dollars more.
12 Bale Trailer mount EZ Ration Processor with Tandems
This 6Bale Trailer mounted EZ Ration Processor has a 3×4 mid-size stacking kit installed on it which includes a second axle and a rocker arm suspension system – beefed up floor supports and an 8 inch beater hood extension (not shown) the 3×4 stacking kit option turns a 6bale unit into a 12bale unit(see options listed below)

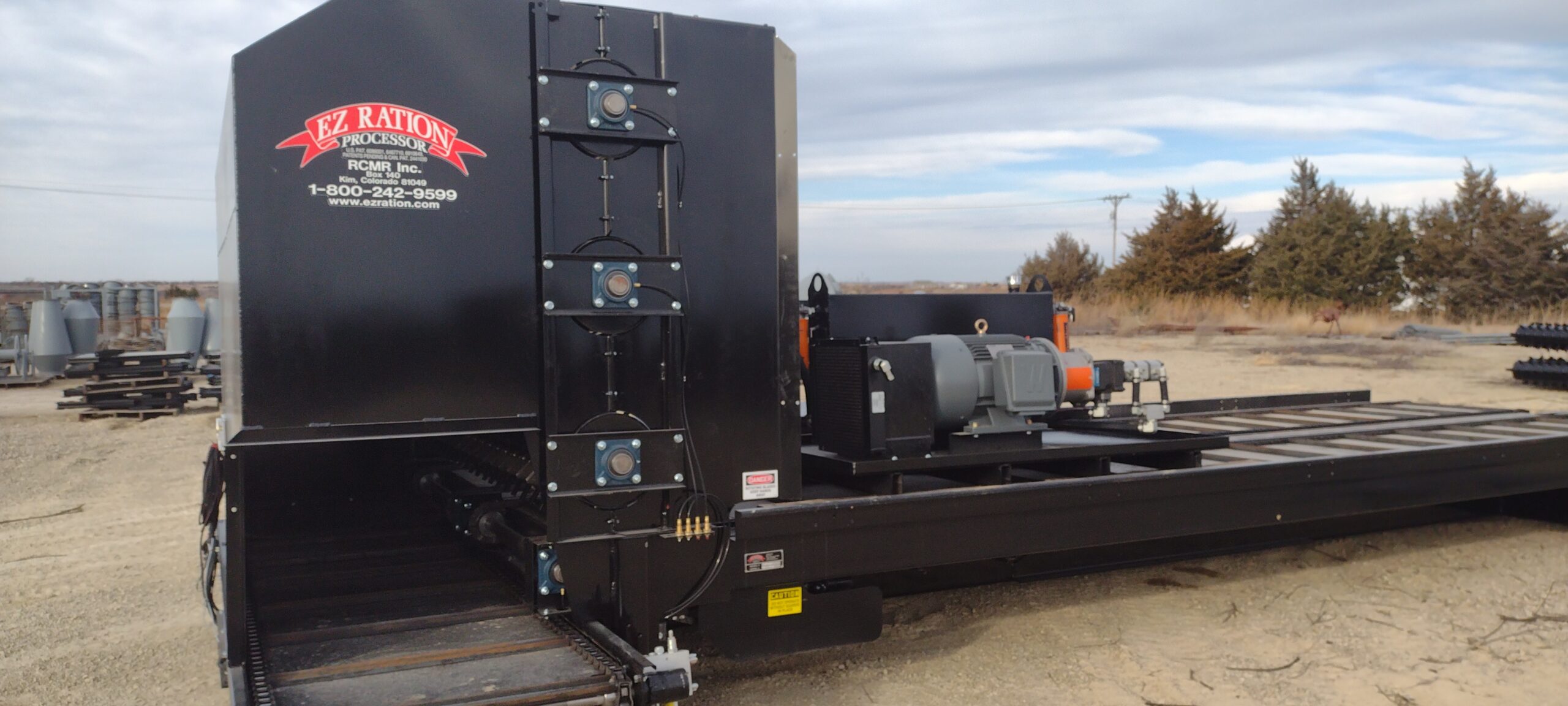

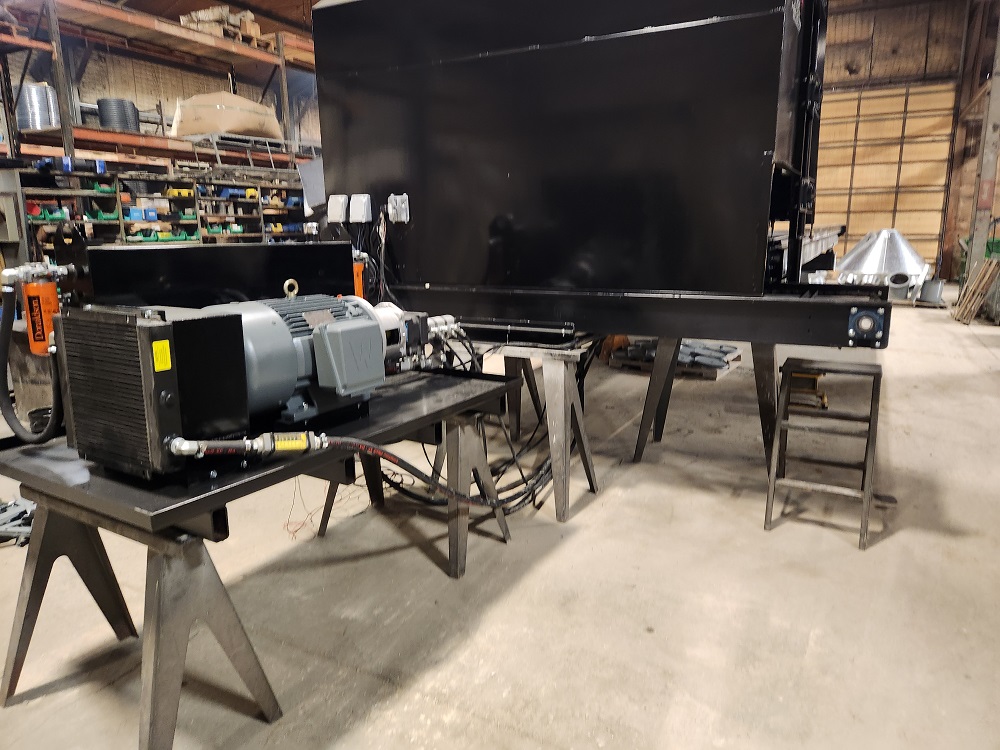

4 & 6 Bale Stationary EZ Ration Processor with touch screen controls
Electric over Hydraulic Stationary EZ Ration Processor with Touch Screen Controls. The same left and right floor speeds control independently and the same proven system with the very popular touch screen controls that has been used for years in our hydraulic truck mounted units.
It comes complete with 50HP 1800RPM 3Ph 60Hz Electric Motor, Special Hydraulic Pumps that will directly hook to the electric motor, a hydraulic radiator for extended/continual 8Hr running, a mounting platform to hold motor/pumps, a cooler, and a Hydraulic reservoir.
Just have your electrician wire it in to your system and you are good to go. Scales are an option. The Scale option comes with two complete scales systems that weight the bales on the left floor separate from the bales on the right floor, which provides assistants in the blending of varying ratios by weight.
Options
Stake Pockets
Stake Pockets give the producer the option of adding sideboards on one sides and down the middle — With the sideboards the producer can feed silage on one side and a bale of hay/feed on the other side and mix the two in any desired ratio—If silage is an option where you live go to our EZ Ration Calculator page and put in you own hay/feed and silage test and see just how cheap you could feed– We have had customers that have really hit a home run utilizing the EZ Ration Processor to blend silage with dry processed roughage
Grain Attachment
Our Grain Attachment gives the producer the option of adding grain in various amounts to the ration while delivering it to the feed bunk. – It is available on both the Trailer Mounted and the Truck Mounted models. There is a air activated lid option available on the Truck Mounted version as well — Adding the Grain Attachment to you EZ Ration Processor really increases your feeding options — From helping the cows out with a little extra energy from time to time to helping that first calf heifer breed back to weaning/growing your calves to putting a pound or two on the old cull cow or bull before they go to market it is well worth the extra money
Independent floor scales
Our new scale ready model EZ Ration Processor is designed with the floor split so the producer can weigh the hay on the left floor chain independently from the hay on the right floor chain* a third scale system can be added for the grain attachment** now the producer will know the exact amount of each feed source fed.
Discharge hood– Manual or Air Activated
Our discharge hood allows you to feed processed hay during high winds and still get the hay in the bunks.
Knife Hood Extension for stacking 3x4x8 bales
Knife Hood Extension for stacking 3x4x8 bales
The 8 inch Knife Hood Extension allows the producer to stack the mid sized 3x4x8 bales dramatically increasing the amount of hay that can be processed – blended and fed in one loading — you can note by the picture a conventional 4x4x8 bale in front and the 3x4x8 bales stacked behind – Note the beater hood extension is all that is needed for stacking the midsized bales on 4 and 6 bale truck models and the 4 bale trailer model — However the 6 bale trailer model requires the stacking kit which included this extension as well as a second axle and other items listed below under that option

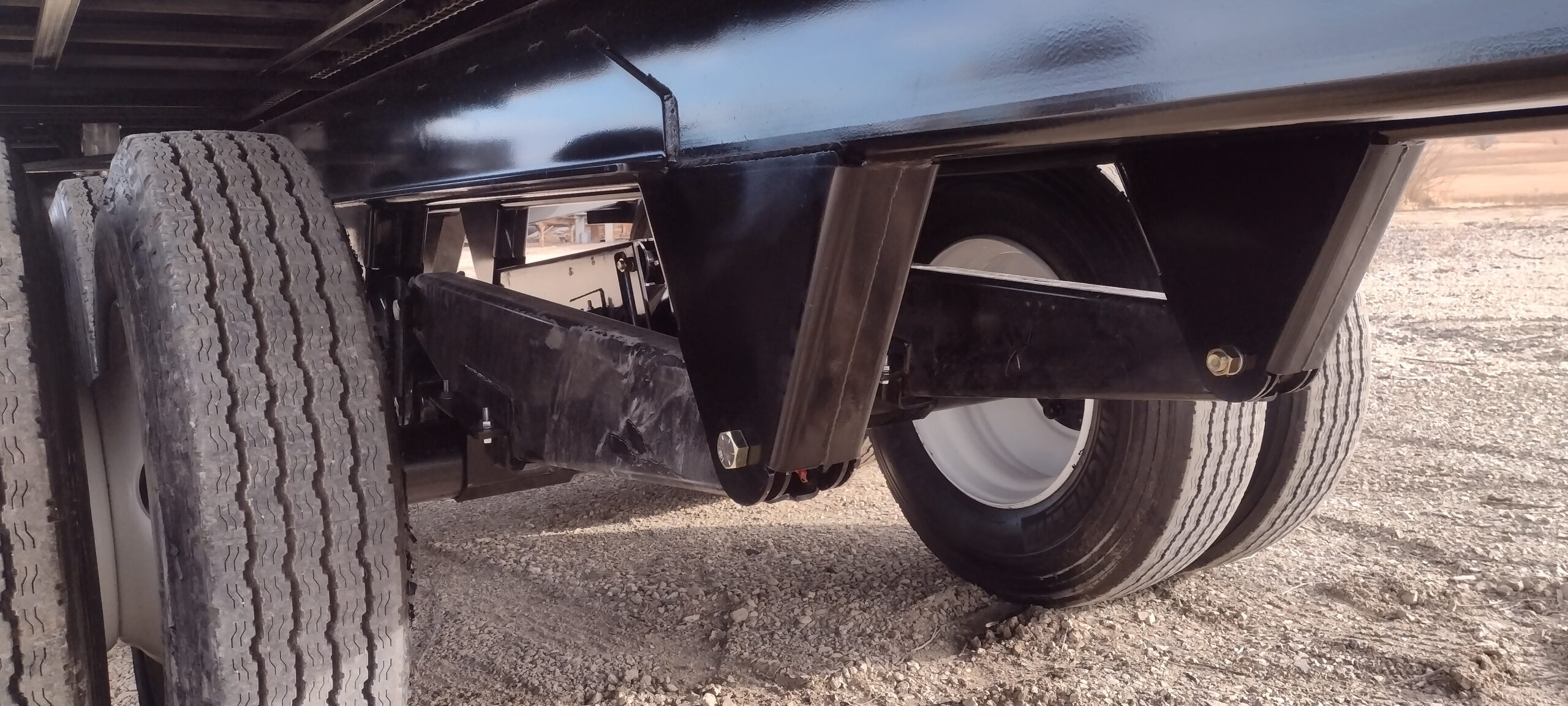

Stacking Midsize Bale Kit Option for 6 bale Trailer mount
Stacking Midsize Bale Kit Option for 6 bale Trailer mount

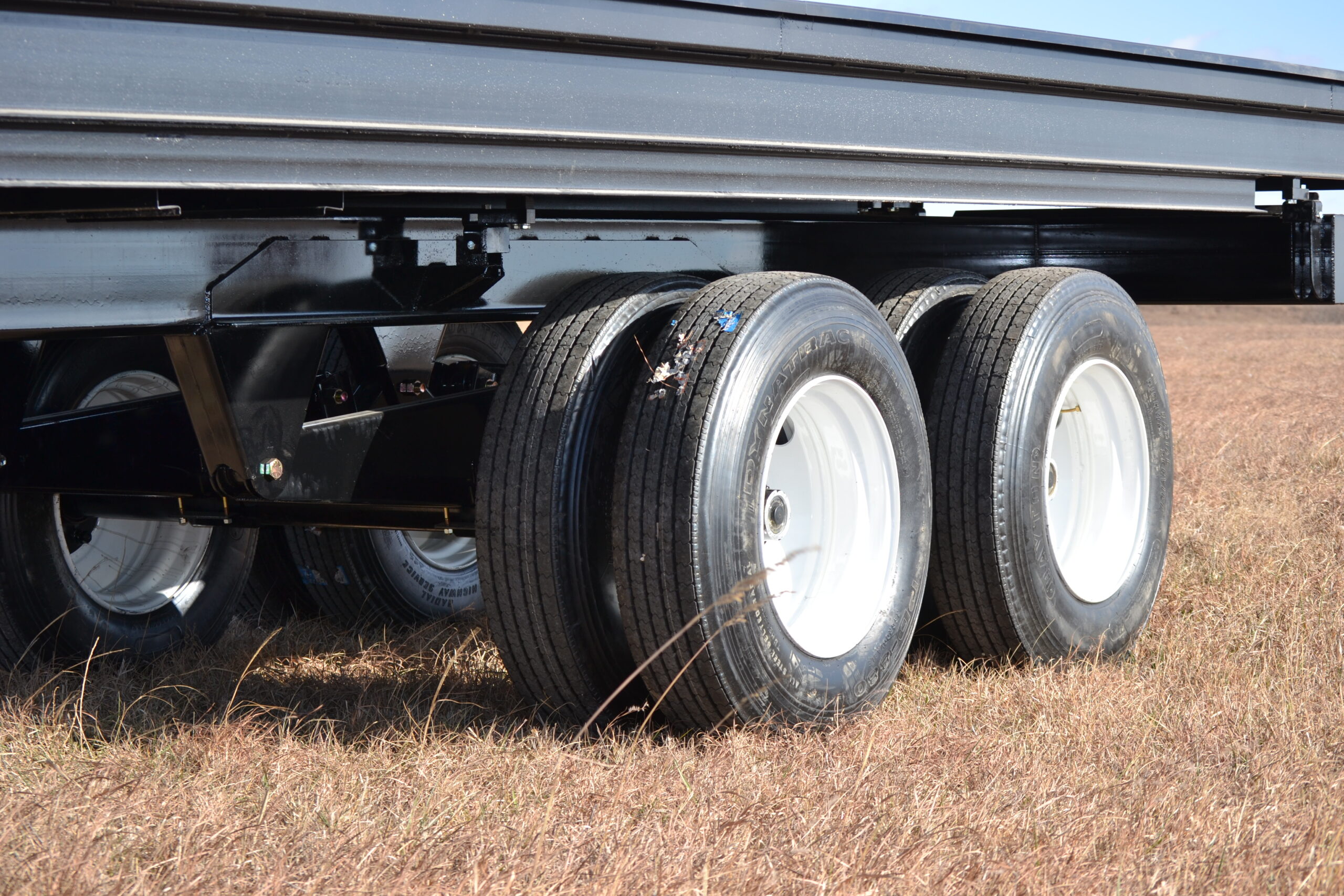

The option includes a second axle with duals (which makes eight 11R 22.5 tires total) and a rocker arm suspension system (shown in the picture) — it also includes beefed up floor supports and the 8 inch knife hood extension. This option allows you to stack the 3x4x8 bales turning the 6 bale trailer mount unit into a 12 bale trailer mount unit. (Click on the Twelve Bale Trailer Mounted unit pictured above for another view)
Super singles
Some customers have been requesting Super Single tires for more flotation and they are now an option on Tractor Pull EZ Ration Processors
Wings
